Multifunctional Vehicle Tracker

The X3, a multifunctional GPS tracker, is optimized for vehicle tracking. It provides accurate real-time location, two-way communication and driving behavior reports. The X3 also features a G-sensor, a door-sensor, and includes I/O ports to support multiple external types of equipment for various applications. X3 is an excellent GPS tracking device for fleet management and security monitoring deployment.

RS232 & TTL serial port

RS232 & TTL serial port Support fuel level sensor, temperature sensor, RFID, etc

Two-way communication

Two-way communication With MIC and speaker connected, it's easy to realize voice-monitor or two-way audio

Multiple I/O for sensors/peripherals

Multiple I/O for sensors/peripherals Monitor and control external devices

Remote cut-off (fuel/power)

Remote cut-off (fuel/power) Compel the vehicle to stop by cut off the fuel connection

Heat-resistant design

Heat-resistant design Special structure provides excellent heat dissipation

GPS & LBS positioning

GPS & LBS positioning Allow the location to be pinpointed in real time or periodically

Application Areas

Corporate
Logistics
Vehicle Rental

GSM Specification
GSM frequency	850/900/1800/1900 MHz
GPRS	Class 12, TCP/IP
Memory	32+32Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm
Max frequency error	±0.1ppm
GPS Specification
GPS chipset	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
GPS channel	66
Location accuracy	<10 meters
Tracking sensitivity	-162dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start≤1sec Avg. cold start≤35sec
Function Package
Voice monitor range	≤5meters
Battery	450mAh/3.7V Li-Poiymer battery
Working Voltage/current	9-36VDC/45mA(12VDC), 28mA(24VDC)
Operating Temperature	-20℃～ 70℃
Dimension	80(L) ×55.8.0 (W) ×23.4 (H) mm
Weight	95g

Standard Accessory

Power cord

NT36 cable

Microphone

Audio cable Relay

Relay

Panic button

User manual

Warm card

Optional Accessory

Buzzer

Capacitive fuel sensor

RFID reader

Temperature sensor

Ultrasonic fuel sensor

Leaflet	PDF
(Optional) Analog Capacitive Fuel Sensor Tutorial	PDF
(Optional) Buzzer Tutorial	PDF
(Optional) RFID Reader Tutorial	PDF
(Optional) Temperature Sensor Tutorial	PDF
(Optional) Ultrasonic Fuel Sensor Tutorial	PDF
use manuel	PDF

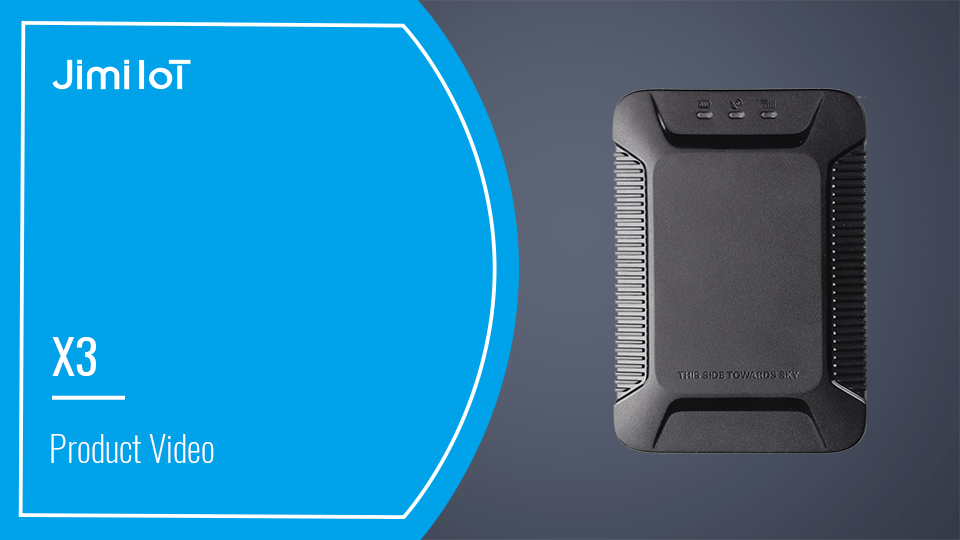

VIDEO
