GT06N Multifunctional Vehicle Tracker

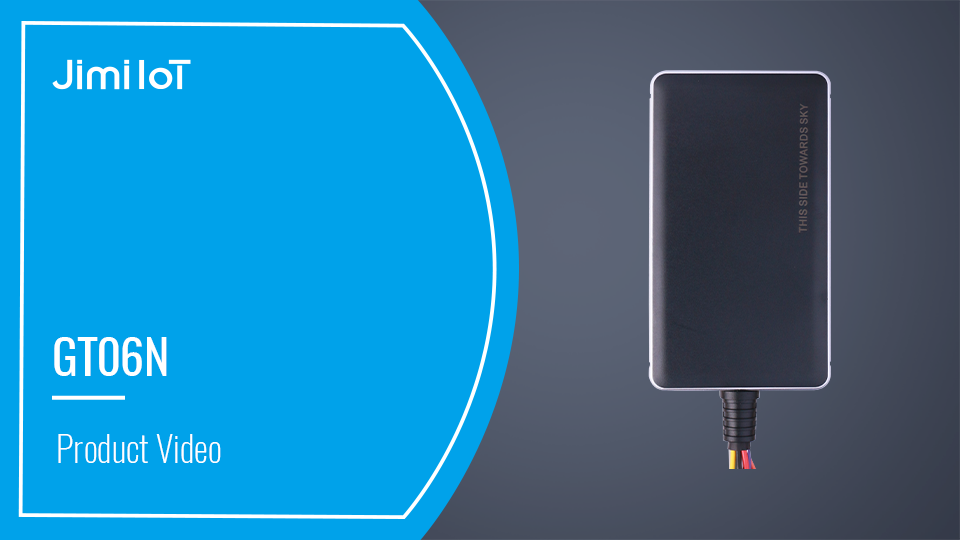

GT06N Vehicle GPS Tracker

The GT06N GPS vehicle tracker is trusted by customers around the world for its rich feature set and durability. From standard tracker telematics like GPS tracking and ACC status to more advanced functions like an SOS button and audio monitoring, the GT06N has them all.


  • upfilesimg/image/15874488170.jpg
Remote cut-off (fuel/power)
Remote cut-off (fuel/power) Immobilize a vehicle by cutting off its power source/fuel supply through an installed relay.
Additional Tx/Rx Interface
Additional Tx/Rx Interface Connect to other accessories that support same protocol for forming better performance.
Panic Button
Panic Button A button close to driver allowing him to ask for immediate help with just a single press.
External Mic for Audio Monitoring
External Mic for Audio Monitoring Extended microphone cable makes it easier to put microphone inside cab.
Ignition Detection
Ignition Detection Always keeps you informed of the ACC status of your vehicle.
Multiple Alerts
Multiple Alerts Instant alerts of typical events such as vibration, low battery, power-off, speeding, etc.


GNSS


Positioning system GPS+BDS+LBS
Frequency L1
Positioning accuracy <2.5m CEP
Track sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec


Cellular


Communication network GSM
Frequency Quad-band 850/900/1800/1900 MHz
Power
Battery 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-36VDC


Interface


LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Standard-SIM
Data storage 32+32Mb
Digital inputs ACC, SOS, input
Digital outputs Relay, output
Physical specification
Dimensions 105.8 x 54.5 x 16.4mm
Weight 96g


Operating environment


Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing


Feature


Voice monitoring range ≤5 meters
Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Voice monitoring, Power supply disconnection
