中文Overview

Jimi Open API empowers distributors and application vendors to provide tracking services to their customers by using their own GUI, app, and web clients, so they can localize their services and improve user experience.


Your App or web client should connect to your application server, rather than connect to JIMI API Server directly , use your application server connect to JIMI Server instead.

Usage

1. Contact us to apply your appKey and appSecrect, you need to provide your account.
2. According to this document to implement your application server to obtain access_token.
3. Calling other interfaces with access_token to fulfil your business logic.

Conventions

Encoding, Format & Timezone



Context-Type:default
The API use UTC (GMT +0) time in default: format


Common response fields

Key Type Required Description
code int Yes result code
message string No description

Result code description

code Value Description
-1 -1 The system is busy
0 0 success
1xxx 1001 Parameter error (lack of required parameters or format error). See interface description for details
1002 Illegal user/illegal device (not their own or subordinate account or device)
1003 Repeat operation
1004 Illegal access, token exception! (Token failure or nonexistent)
1005 Illegal access, ip access exceeds limit!
1006 Illegal access, too frequently request!
1007 Illegal access, request method error!
1008 Illegal access, abnormal incoming!
12001 Platform account creation failed
12002 Device transfer failed
12003 Geo-fence creation failed
12004 Geo-fence deletion failed
12005 Fail to send command

Error code:

code Value Description
Create account 213 Account already exist
214 Account does not exist
215 User type error. Possible reasons: 1.User type is empty; 2. User type does not exist; 3. Current login user do not have permission to create new type of user.
Device transfer 217 Target user does not exist
218 User can only transfer/sale devices to sub-account
219 IMEI list is illegal
220 Number of IMEI exceeds limitation.
Geo-fence 41001 Exceed max number of Geo-fences supported
41002 Fence name is already exists
41003 The device is not online
41004 Geo-fence operation failed
Command 225 Time out
226 Parameter error
227 The command is not executed correctly
228 The device is not online
229 Network error, connection error, etc.
238 Device interrupted
240 Data format error
243 Not supported by device
252 The device is busy

Work Flow

API Work Flow

API Work Flow

API Features

Interface type Method Description
Access token jimi.oauth.token.get Get access_token
jimi.oauth.token.refresh Refresh access_token
User API jimi.user.child.list List all sub-account
jimi.user.device.list List all devices of current account
jimi.user.child.create Create sub-account
jimi.user.child.del Remove sub-account
jimi.user.child.move Move sub-account to another account
jimi.track.device.detail Get device detail information for specific IMEI
jimi.user.device.location.list Get the latest location for all devices
Device API jimi.device.location.get Get the latest location data for specific IMEI
jimi.device.location.URL.share Get URL for showing location on the Map
jimi.user.device.expiration.update Change user expiration date for devices
jimi.device.track.list Obtain track data according to IMEI
jimi.device.track.mileage Get mileage report for devices
jimi.open.device.update Modify the vehicle information for device
Jimi.device.media.URL Get URL of photo or video capture by camera
jimi.device.live.page.url Get device live streaming page URL
Command API jimi.open.instruction.list Gets commands supported by the device
jimi.open.instruction.send jimi.open.instruction.send
jimi.open.instruction.result Get the command result
Geo-fence API jimi.open.device.fence.delete Remove the Geo fence for the device
jimi.open.device.fence.create Create an Geo fence for the device
LBS-API jimi.lbs.address.get Wi-Fi base station location analysis
Message jimi.push.device.alarm Push alarm notification
jimi.device.alarm.list Get alarm list for device
Scooter API jimi.scooter.instruction.send Send command to scooter device
jimi.scooter.device.detail Get scooter status and other detail information

API Description

Request URL

The unique request URL is: http://open.10000track.com/route/rest

Different interfaces are identified by request parameter method.

Security

Client should get access_token first before calling the interface, which is generated by JIMI Server by calling jimi.oauth.token.get interface(method=jimi.oauth.token.get) with provided appKey and appSecrect.


appKey and access_token are required to sign request parameters when calling API. JIMI server will validate the the request parameters by checking the sign value.

Common parameterss

The parameters of each request should include Common parameterss and interface private parameters. For example, if you call the “jimi.oauth.token.get” interface, you need to provide :

7(Common parameterss) + 3(private parameters) = 10 (parameters, key/value)


Name Type Required Description Remark Default
method string Yes API interface name
timestamp string Yes Timestamp, format:yyyy-MM-dd HH:mm:ss. Plus or minus10 minutes is allowed. e.g:2012-03-25 20:00:00 GMT(UTC) time.
app_key string Yes APP_KEY from JIMI
sign string Yes A signature base on parameters, appKey, appSecrect.
sign_method string Yes Optional,signature method. Available value: md5, support methods are: md5
v string Yes Optional, specify the API version. System default 1.0, support version: 1.0 >md5 >md5
System default 1.0, support version: 0.9, 1.0 1.0: check signature
format string Yes Optional, specify response format. json

Signature

To protect API calling from hacked, any API calling needs to be with a signature. JIMI server will check signature based on request parameters. Illegal signature request will be rejected. Signature algorithms supported is: md5 (sign_method is a Common parameters mentioned above). Following is the algorithm of signature:

1. Sort all request parameters with parameter key in alphabetical order (including Common parameterss and method specific parameters, but NOT include sign and byte type parameter.

For example:

foo=1, bar=2, foo_bar=3, foobar=4
Result: bar=2, foo=1, foo_bar=3, foobar=4

2. Remove all equal sign and comma:

bar2foo1foo_bar3foobar4

3. Then concatenate appSecrect to the before and end of the result string and get the md5 value. E.g:

md5(<appSecrect>+bar2foo1foo_bar3foobar4+<appSecrect>), the real string should like: md5(h9lri085eachcz4sn7gwnkh6j0jt0yz4bar2foo1foo_bar3foobar4h9lri085eachcz4sn7gwnkh6j0jt0yz4)

Note that the string should be in UTF-8 encoding.
Note that the sign should be upper case string.

If the parameter value is a byte stream, it should be converted to hexadecimal. For example:hex(“helloworld”.getBytes(“utf-8”)) = “68656C6C6F776F726C64”


MD5 is the 128-bit summary algorithm and is in hexadecimal. a hexadecimal character can represent four bits, so the signature string length is 32 hexadecimal characters.

JAVA example:

public static String signTopRequest(Map <String, String> params, >String seccode, String> signMethod) throws IOException {
    // 1:sort parameter key
    String[] keys = params.keySet().toArray(new String[0]);
    Arrays.sort(keys);

    // 2:: Put all parameter names and parameter values together
    StringBuilder query = new StringBuilder();
    if (Constants.SIGN_METHOD_MD5.equals(signMethod)) {
        query.append(seccode);
    }
    for (String key : keys) {
        String value = params.get(key);
        if (StringUtils.areNotEmpty(key, value)) {
            query.append(key).append(value);
        }
    }

    // 3: use MD5/HMAC to encrypt
    byte[] bytes;
    if (Constants.SIGN_METHOD_HMAC.equals(signMethod)) {
        bytes = encryptHMAC(query.toString(), seccode);
    } else {
        query.append(seccode);
        bytes = encryptMD5(query.toString());
    }

    // 4: convert binary to uppercase hexadecimal
    return byte2hex(bytes);
}

public static byte[] encryptHMAC(String data, String seccode) throws IOException {
    byte[] bytes = null;
    try {
        seccodeKey seccodeKey = new seccodeKeySpec(seccode.getBytes(Constants.CHARSET_UTF8), "HmacMD5");
        Mac mac = Mac.getInstance(seccodeKey.getAlgorithm());
        mac.init(seccodeKey);
        bytes = mac.doFinal(data.getBytes(Constants.CHARSET_UTF8));
    } catch (GeneralSecurityException gse) {
        throw new IOException(gse.toString());
    }
    return bytes;
}

public static byte[] encryptMD5(String data) throws IOException {
    return encryptMD5(data.getBytes(Constants.CHARSET_UTF8));
}

public static String byte2hex(byte[] bytes) {
    StringBuilder sign = new StringBuilder();
    for (int i = 0; i < bytes.length; i++) {
        String hex = Integer.toHexString(bytes[i] & 0xFF);
        if (hex.length() == 1) {
            sign.append("0");
        }
        sign.append(hex.toUpperCase());
    }
    return sign.toString();
}


Get access token

Description

Client(distributor’s server) should stored the access_token locally, do NOT get access_token per request, instead, use the local access_token before it become invalid. JIMI server will not allow to access if the request frequency is too high from client.


The access token can be used for about 2 hours(depend on the value for expires_in parameter), do NOT try to get token for every request.

Request URL

See the unique request URL.Method = jimi.oauth.token.get

HTTP request method

POST

Request parameter

(1) Common parameters


(2) Private parameters


Name Type Required Description Remark Default
user_id string Yes User ID User’s account
user_pwd_md5 string Yes user’s password (md5) Lowercase md5 value
expires_in number Yes access token expired seconds 60-7200

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result
accessToken string Access token, required by any other following interfaces
expiresIn string Access token expired seconds
account string User’s account
appKey string AppKey from JIMI
refreshToken string Refresh token, which is used for updating accessToken
time string Token generated time

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": {
    "appKey": "8FB345B8693CCD003CC2DAB61EC8791D",
    "account": "jimitest",
    "accessToken": "7da3330ec28e3996b6ef4a7e3390ba71",
"expiresIn": 60
"refreshToken": "7da3330ec28e3996b6ef4a7e3390ba71",
	"time": "2017-06-15 10:00:00"

  }
}

Return error example:

{"code":xxx,"message":"Incorrect user name or password"}

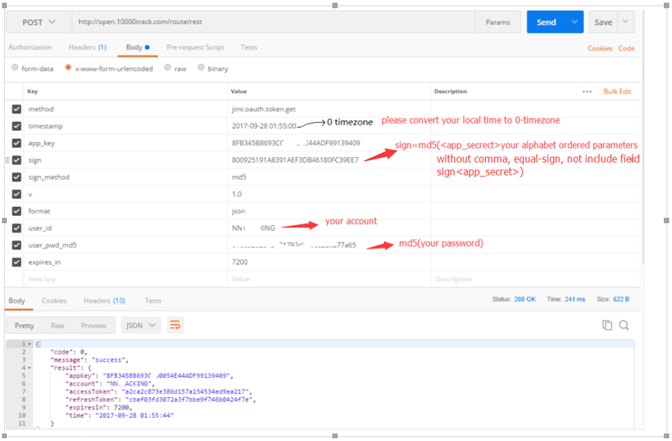

Postman demo:

Postman demo


user_id = your tracksolid account.
user_pwd_md5 = md5(your tracksolid account password).
Sign = md5(<app_secrect>your alphabet ordered parameters keyvalue, without equal-sign, comma and not include sign field<app_secrect>).
Note that sign is a 32-length upper case string.

For example:

<app_secrect>app_key9FB345B8693CCD0054E44ADF99139409expires_in7200formatjsonmethodjimi.oauth.token.getsign_methodmd5timestamp2017-09-28 01:55:00user_id<account>user_pwd_md5<password_md5>v1.0<app_secrect>

Refresh access token

Description

This interface is used to update token manually when access token is about to be invalid.

Request URL

See the unique request URL.Method = jimi.oauth.token.refresh

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Description Remark Default
access_token string Yes Access token
refresh_token string Yes Authorized refresh access token
expires_in number Yes Access token expired seconds 60-7200

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result
accessToken string Access token, required for subsequently interface access.
expiresIn string Access token expired seconds.
account string Requested account
appKey string From JIMI
refreshToken string Refresh token for updating access token
time string Token generated time

Example for correct Response:

{
  "code": 0,
  "message": "success",
  "result": {
    "appKey": "8FB345B8693CCD003CC2DAB61EC8791D",
    "account": "jimitest",
    "accessToken": "7da3330ec28e3996b6ef4a7e3390ba71",
    "expiresIn": 60,
	"refreshToken": "7da3330ec28e3996b6ef4a7e3390ba71",
	"time": "2017-06-15 10:00:00"
  }
}


Return error example:

{"code":xxx,"message":"Illegal request,token is invalid"}

List all sub-account

Description

List all sub-account of a specified account.

Request URL

See the unique request URL.Method = jimi.user.child.list

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
target string Yes - The specified account for inquired.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result

Result:

Key Type Description
account string log in account
name string name
type int Account Type
3:App user
8:Distributor
9:ordinary users
10:ordinary distributor
11:sales
displayFlag int Available or not (1:Available,0:not available)
address string Location
birth string Birthday
companyName string Company name
email string Mailbox
phone string Contact number
language string Language (zh,en)
sex int Gender 0 male,1 female
enabledFlag int Flag:1 Available, 0not available
remark string Remark

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "account": "123123",
      "name": "test",
      "type": 8,
      "displayFlag": 1,
      "address": null,
      "birth": "2017-04-22 00:00:00",
      "companyName": "",
      "email": "",
      "phone": "",
      "language": "zh",
      "sex": 0,
      "enabledFlag": 1,
      "remark": null
    }
  ]
}


Wrong return example:

{"code":xxx,"message":"The account does not exist"}

Create sub-account

Description

Create a sub-account of a specified account.

Request URL

See the unique request URL.Method = jimi.user.child.create

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
super_account string No - The specified parent account. If not provided, use API account instead.
account_id string Yes - Account id, length of 3~30 characters. Support special characters like “_@.” as well as a-Z, 0-9.
nick_name string Yes - Nick name or customer name
account_type int Yes - 1-Distributor 2-End User 3-Sales
password string Yes - Password with md5.
telephone string No -
Email string Yes - User could retrieve password if forgot it.
contact_person string No -
company_name string No -
permissions string Yes - Web Login
App Login
Send Command
Set Working Mode
Edit by Web
Edit by App
The 6 digits represent whether to the permission.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result

Correct return example:

{
  "code": 0,
  "message": "Vehicle information modification successful",
  "result": null
}


Wrong return example:

{"code":xxx,"message":"The account does not exist"}

Remove sub-account

Description

Remove a sub-account of a specified account.

Request URL

See the unique request URL.Method = jimi.user.child.del

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
super_account string No - The specified parent account. If not provided, use API account instead.
account_id string Yes - Account id, length of 3~30 characters. Support special characters like “_@.” as well as a-Z, 0-9.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result

Correct return example:

{
  "code": 0,
  "message": "Vehicle information modification successful",
  "result": null
}


Wrong return example:

{"code":xxx,"message":"no permissions"}

Move account

Description

Move account from one sub-account to another sub-account.

Request URL

See the unique request URL.Method = jimi.user.child.move

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Access token for security access JIMI Server.
account string Yes - The account will be moved.
target_account string Yes - The target account to move in.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result

Correct return example:

{
  "code": 0,
  "message": "Vehicle information modification successful",
  "result": null
}


Wrong return example:

{"code":xxx,"message":"no permissions"}

List all devices of sub-account

Description

Query all devices of a specified account.

Request URL

See the unique request URL.Method = jimi.user.device.list

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
target string Yes - The specified account for inquired.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
imei string Device IMEI
deviceName string Device name
mcType string Device model
mcTypeUseScope string Automobile, electromobile, personal, pet, plane, others
sim string Sim card number
expiration string Platform expiration date
activationTime string Activation time
reMark string Remarks
vehicleName string Vehicle name
vehicleIcon string Vehicle icon
vehicleNumber string License plate number
vehicleModels string Brand
carFrame string VIN
driverName string Driver name
driverPhone string Driver phone number
enabledFlag int Available or not (1:Available,0:not available)
engineNumber string Engine number

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "imei": "868120145233604",
      "deviceName": "868120145233604",
      "mcType": "GT300L",
      "mcTypeUseScope": "personal",
      "sim": "415451",
      "expiration": "2037-04-01 23:59:59",
      "activationTime": "2017-04-01 11:02:20",
      "reMark": "test",
      "vehicleName": null,
      "vehicleIcon": "bus",
      "vehicleNumber": "粤B3604",
      "vehicleModels": null,
      "carFrame": "2235",
      "driverName": "driver",
      "driverPhone": "13825036579",
      "enabledFlag": 1,
      "engineNumber": "8565674"
    }
  ]
}


Return error example:

{"code":xxx,"message":"Account queried doesn’t exist"}

Get device detail information

Description

Get device detail information for specific IMEI.

Request URL

See the unique request URL.Method = jimi.track.device.detail

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
IMEI string Yes - The specified IMEI for inquired.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
imei string Device IMEI
deviceName string Device name
mcType string Device model
mcTypeUseScope string Automobile, electromobile, personal, pet, plane, others
sim string Sim card number
expiration string Platform expiration date
user_expiration string User expiration date, format as: account1,2019-01-01|account2,2019-02-02
activationTime string Activation time
reMark string Remarks
vehicleName string vehicleName
vehicleIcon string Vehicle icon
vehicleNumber string License plate number
vehicleModels string Vehicle Model
carFrame string VIN
driverName string Driver name
driverPhone string Driver phone number
enabledFlag int Available or not (1:Available,0:not available)
engineNumber string Engine number
iccid string
importTime string
imsi string
licensePlatNo string
VIN string
vehicleBrand string
fuel_100km string Fuel consumption for per 100km.
status string 0-disable 1-enable

Correct return example:

{
  "code": 0,
  "message": "success",
  "result":
    {
      "imei": "868120145233604",
      "deviceName": "868120145233604",
      "mcType": "GT300L",
      "mcTypeUseScope": "personal",
      "sim": "415451",
      "expiration": "2037-04-01 23:59:59",
      "activationTime": "2017-04-01 11:02:20",
      "reMark": "test",
      "vehicleName": null,
      "vehicleIcon": "bus",
      "vehicleNumber": "粤B3604",
      "vehicleModels": null,
      "carFrame": "2235",
      "driverName": "driver",
      "driverPhone": "13825036579",
      "enabledFlag": 1,
      "engineNumber": "8565674",
 "iccid": "xxxxxxx",
 "imsi": "xxxx",
 "importTime": "2017-04-01 11:02:20",
 "licensePlatNo": "8565674",
 "VIN": "xxxxxxx",
 "vehicleBrand": "xxxx",
 "fuel_100km": "9",
 "status": "8565674"
    }
}

Wrong return example:

{"code":xxx,"message":"Account queried doesn’t exist"}

Get location of devices by account

Description

Get the latest location for all devices under an account.

Request URL

See the unique request URL.Method = jimi.user.device.location.list

HTTP request method

POST

Request parameters

(1) Common parameterss

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token for security access JIMI Server.
target string Yes - Specify the account for inquired.
map_type string No - map_type=GOOGLE, calibrated by google calibration.
map_type=null, return origin latitude and longitude

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
imei string Device IMEI
deviceName string Device name
icon string Vehicle icon
status string Device status 0 - offline; 1 - online
Lat double Longitude (if the device is expired, the value is 0)
Lng double Latitude (if the device is expired, the value is 0)
expireFlag string Expired or not: 1- expired; 0 - not expired
activationFlag string Activate or not 1 - Activate; 0 - Not active
posType string GPS, LBS, WIFI,BEACON
locDesc string Location information
gpsTime string GPS positioning time
hbTime string Heartbeat time
Speed string Speed(unit: km/h)
accStatus string ACC 0-OFF; 1-ON
electQuantity string Device battery (0-100), some models are not supported
powerValue string External voltage(0-100), some models are not supported

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "imei": "868120145233604",
      "deviceName": "868120145233604",
      "icon": "bus",
      "status": "0",
      "posType": "GPS",
      "lat": 22.577282,
      "lng": 113.916604,
      "hbTime": "2017-04-26 09:14:50",
      "accStatus": "0",
      "speed": "0",
      "gpsTime": "2017-04-26 09:17:46",
      "activationFlag": "1",
      "expireFlag": "1",
      "electQuantity": "60",
      "locDesc": null
      "powerValue": null
    }
  ]
}


Wrong return example:

{"code":xxx,"message":"The account does not exist"}

Get the location of device(s)

Description

Get the latest location for one or multiple devices.

Request URL

See the unique request URL.Method = jimi.device.location.get

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes accesstoken: used to security access JIMI server.
imei string Yes - Device IMEI. Separate imei by comma; POST is recommended if too many devices (maximum 100 IMEI)
map_type string No - map_type=GOOGLE, calibrated by google calibration. map_type=null, return origin latitude and longitude

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data

Result list:

Key Type Description
IMEI string Device IMEI
deviceName string Device name
Icon string Vehicle icon
status string Device status 0, offline; 1, online
Lat double Longitude (if the device expires, the value is 0)
Lng double Latitude (if the device expires, the value is 0)
expireFlag string 1- expired; 0 - not expired
activationFlag string 1 - Activate; 0 - Not active
posType string GPS, LBS, WIFI, BEACON
locDesc string Location information
gpsTime string GPS positioning time
hbTime string Heartbeat time
speed string Speed (unit: km/h)
accStatus string ACC 0- off ;1- on
electQuantity string battery(0-100), Some device models are not supported
powerValue string External voltage(0-100), Some device models are not supported
distance string Distance from device.

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "imei": "868120145233604",
      "deviceName": "868120145233604",
      "icon": "bus",
      "status": "0",
      "posType": "GPS",
      "lat": 22.577282,
      "lng": 113.916604,
      "hbTime": "2017-04-26 09:14:50",
      "accStatus": "0",
      "speed": "0",
      "gpsTime": "2017-04-26 09:17:46",
      "activationFlag": "1",
      "expireFlag": "1",
      "electQuantity": "60",
      "locDesc": null
      "powerValue": null
    }
  ]
}


Wrong return example:

{"code":xxx,"message":"Illegal device"}

Get sharing location URL

Description

Get the URL of device location showing on the Map.

Request URL

See the unique request URL.Method = jimi.device.location.URL.share

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token: used to security access JIMI server.
imei string Yes - Device Imei

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data contains URL information.

Correct return example:

{
  "code": 0,
  "message": "success",
  "result":
    {
      "URL": "data.16180track.com/api/share?ver=2&method=trackDevice_abr&deviceinfo=7ae7c62385f2067f164002db315854a969a40e3888021cb01dc8f2183ca08dbbd8581f6bb86df4c2e3e1b887cb67c21039b4c0ced18fdf8dd08e0460c5edd13ad87e16dca9702ce6",
    }
}


Wrong return example:

{"code":xxx,"message":"Illegal device"}

Update user expiration date of devices.

Description

Request URL

See the unique request URL.Method = jimi.user.device.expiration.update

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes Access token: used to security access JIMI server.
imei_list string Yes - One or multiple devices IMEI.
new_expiration string Yes - New user expiration date for devices.

Response

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data contains URL information.

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "imei": "868120145233604",
      "update_result": "0",
      "update_msg": "update success"
},
{
      "imei": "868120145233605",
      "update_result": "1",
      "update_msg": "update failed, reason:xxxxxx"
    }

  ]
}


Wrong return example:

{"code":xxx,"message":"Illegal device"}

Get the mileage data of devices

Description

Get device(s) mileage data of specified time range.

Request URL

See the unique request URL.Method = jimi.device.track.mileage

HTTP request method

POST

(1) Common parameters

(2) Private parameters



Request parameters

Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imeis string Yes - Device imeis, separate by comma.
Format: yyyy-MM-dd HH:mm:ss
begin_time number Yes - Start time
Format: yyyy-MM-dd HH:mm:ss
end_time number Yes - End time
Format: yyyy-MM-dd HH:mm:ss
end_time should be earlier than current time
start_row number No - Row number of result set.
page_size number No - Records in one page.

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
imei string IMEI of device
startTime string Start time
endTime string End time
startLat string Latitude of start position.
startLng string Longitude of start position.
endLat string Latitude of end position.
endLng string Longitude of end position.
runTimeSecond int Second of elapsed between start and end position.
distance Double Distance(meter) between start and end position.
avgSpeed Double Average speed

E.g:

{
  "code": 0,
  "message": "success",
  "result": [
{
 "imei": “3505831983422342”,
 "startTime": "2017-04-26 00:00:58",
 "endTime": "2017-04-26 00:03:58",
      "startLat": 22.577144898887813,
      "startLng": 113.91674845964586,
      "endLat": 22.677144898887813,
      "endLng": 113.92674845964586,

      "elapsed": 2130,
      "distance": 25000,
      "avgSpeed": 90
    }
  ]
}


Get the track data of device

Description

Get device track data of not more than 2 days, within 3 months.

Request URL

See the unique request URL.Method = jimi.device.track.list

Request parameters

(1) Common parameters

(2) Private parameters


HTTP request method

POST

Request parameters

Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imei string Yes - Device imei( only 1 each time)
begin_time number Yes - Start time
Format: yyyy-MM-dd HH:mm:ss
end_time number Yes - End time
Format: yyyy-MM-dd HH:mm:ss
end_time should be earlier than current time
map_type string No - map_type=GOOGLE, calibrated by google calibration.
map_type=null, return origin latitude and longitude

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
lng double Longitude
lat double Latitude
gpsTime string GPS positioning time. Format yyyy-MM-dd HH: mm: ss
direction string Direction, polar coordinates started from due north
gpsSpeed string GPS speed
posType string 1-GPS, 2-LBS, 3-WIFI
satellite string GPS antenna signal strength

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "lat": 22.577144898887813,
      "lng": 113.91674845964586,
      "gpsTime": "2017-04-26 00:00:58",
      "direction": 0,
      "gpsSpeed": -1,
      "posType": 3
    },
    {
      "lat": 22.57708,
      "lng": 113.916631,
      "gpsTime": "2017-04-26 00:01:30",
      "direction": 184,
      "gpsSpeed": 0,
      "posType": 1
    }
  ]
}


Return error example:

                    {"code":xxx,"message":"IMEI does not exist{353419031939627}"}
                    {" code ":xxx,"message":"The device has expired{353419031939627}"}


Update vehicle information by IMEI

Description

Update vehicle information by IMEI

Request URL

See the unique request URL.Method = jimi.open.device.update

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imei string Yes - Device IMEI
device_name string No - Device name
vehicle_name string No - Vehicle name
vehicle_icon string No - Vehicle icon
Vehicle plate number string No - Vehicle plate number
vehicle_models string No - Vehicle brand
driver_name string No - Driver name
driver_phone string No - Driver phone
device_status string No - 0 - disable/1-enable.
Enable/Disable devices.

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data,could be multiple rows.

Correct return example:

{
  "code": 0,
  "message": "Vehicle information modification successful",
  "result": null
}
Wrong return example:
{"code":xxx,"message":"imei doesn’t exists"}



Vehicle Icon:

Icon key Description
automobile Car
bus Bus
per People
mtc Motorcycle
truck
taxi
plane
schoolBus
excavator
ship
tricycle
policeMtc Police Motorcycle
tractor
policeCar
cow
other

Get Device Photo or Video URL

Description

Get device photo or video URL which capture by camera.

Request URL

See the unique request URL.Method = jimi.device.media.URL

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imei string Yes - Device IMEI
camera string Yes - 1-front camera 2- inward camera
media_type string Yes - 1 -photo 2-video
start_time date No - Start time of photo or video created.
end_time date No - End time of photo or video created.
token string No - Token used to validate whether can access photo or video or not.
page_no int No - Zero indexed, 0 by default.
page_size int No - 10 rows by default.

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
thumb_URL string URL of video or photo thumbnail.
file_URL string URL of video or photo.
mime_type string Mime type of video or photo
create_time date Create time of video or photo.
media_type string 1-photo 2-video
camera string 0-front camera 1-inward camera
file_size int File size of photo or video.

Correct return example:

{
  "code": 0,
  "message": "Operation successful",
  "result":
[
{
      "thumb_URL": “Q9GLAFFqfCrYF6YfQAcON4w4Ezs=/lhWse7ie3wtFrjuQZ22dLAk5CSaR”,
      "file_URL": “357730090345670_3949477_2019_04_29_12_32_38_01”,
      "mime_type": "video/mp4",
      "create_time": 2019-04-29 10:32:43,
      "media_type": 2,
      "camera": 1,
      "file_size": 9949087
},
{
      "thumb_URL": “Q9GLAFFqfCrYF6YfQAcON4w4Ezs=/FhCrZEIy3518sR_ylOlqDg7w3Ju-”,
      "file_URL": “351609080120911_3949476_2019_04_29_18_32_12”,
      "mime_type": "video/3gpp",
      "create_time": 2019-04-29 10:32:42,
      "media_type": 2,
      "camera": 1,
      "file_size": 2411318
}

]


}


Return error example:

{"code":xxx,"message":"imei doesn’t exists"}

Get Device Live Steaming Page URL

Description

Get device live streaming page URL& last position information.

Request URL

See the unique request URL.Method = jimi.device.live.page.url

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imei string Yes - Device IMEI
V string No - If v=2, need to provide token parameter, Jimi server will use this token to validate URL.
token string No - Token used to validate whether can access live video or not.

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
lng double Longitude
lat double Latitude
gpsTime string GPS positioning time. Format yyyy-MM-dd HH: mm: ss
direction string Direction, polar coordinates started from due north
gpsSpeed string GPS speed
posType string 1-GPS, 2-LBS, 3-WIFI
satellite string GPS antenna signal strength
VIN string VIN
plateNo string License Plate Number
UrlCamera string Live streaming page URL

Correct return example:

{
  "code": 0,
  "message": "Vehicle information modification successful",
  "result":
    {
      "lat": 22.577144898887813,
      "lng": 113.91674845964586,
      "gpsTime": "2017-04-26 00:00:58",
      "direction": 0,
      "gpsSpeed": -1,
      "posType": 3,
    	  "satellite": 11,
      "VIN":  "V12345",
      "plateNo":"ABC-12345",
      "UrlCamera": "https://www.domain.com/device/video/35408343202342345",
    }


}


Return error example:

{"code":xxx,"message":"imei doesn’t exists"}

Wi-Fi, Base Station locating analysis

Description

Allocate by total devices under the account (10 times/day/device. All sub-accounts included)

Request URL

See the unique request URL.Method = jimi.lbs.address.get

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Access token: used to identify legal client.
imei number Yes - Device IMEI
lbs number No - (wifi/LBS: at least one) LBS inforamtion group (mcc,mnc,lac,cell,rssi), max 7. Each group has five, which should not be null and sorted in order. MCC, China: 460
MNC
LAC information, 2312 23222
CELL code: 23222
RSSI Semaphore-70
wifi string No - (wifi/LBS: at least one)
mac1,rssi1| mac2,rssi2
Mac address, no colon in between.
Rssi signal strength

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
lng string Longitude
lat string Latitude
accuracy string Accuracy, the greater the value the better
direction string Direction, polar coordinates started from due north

Correct return example:

{
"code": 0,
"message": "success",
"result": {
  "lat": 40.65615416521587,
  "lng": 109.89894039833524,
  "accuracy": 0
}
}


Return error example:

{"code":xxx,"message":"illegal device"}

Create Geo-fence for IMEI

Description

Create Geo-fence for IMEI

Request URL

See the unique request URL.Method = jimi.open.device.fence.create

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei
fence_name string Yes - Geo-fence name
alarm_type string Yes - Alarm type (in / out / in, out)
report_mode string Yes - Alarm reporting mode, 0: GPRS,1: SMS+GPRS
alarm_switch string Yes - Fence alarm switch(ON/OFF)
lng string Yes - Longitude
lat string Yes - Latitude
radius string Yes - Fence radius(1~9999;unit: 100 meters)
zoom_level string Yes - Zoom level (3-19)
map_type string Yes - Map (GOOGLE)

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data. Fence serial number returned if succeed.

Correct return example:


{
"code": 0,
"message": "Successfully create geo-fence.",
"result": "5"
}
Wrong return example:
{
"code": 41003,
"message": "Device is not online, geo-fence creation failed ",
"result": null
}


Delete Geo-fence for device

Description

Delete Geo-fence for device.

Request URL

See the unique request URL.Method = jimi.open.device.fence.delete

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei
instruct_no string Yes - Geo-fence command serial number

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data

Correct return example:

{
"code": 0,
"message": "delete the geo-fence successfully",
"result": null
}


Return error example:

{
"code": 41003,
"message": "The device is not online and geo-fence can’t be deleted",
"result": null
}


Get command list supported by device

Description

Get command list supported by device

Request URL

See the unique request URL.Method = jimi.open.instruction.list

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result
id string Command code
orderName string Command name
orderContent string Command template
orderExplain string Command explanation
orderMsg string Prompt
isOffLine string If support offline command 0-no; 1-yes

Correct return example:

{
"code": 0,
"message": "success",
"result": [
  {
    "id": 81,
    "orderName": "SOS setting",
    "orderContent": "SOS,A,{0},{1},{2}#",
    "orderExplain": "SOS is used for receive alerts and SOS alerts. SOS number should have 3-20 numbers.",
    "orderMsg": "",
    "isOffLine": "1"
  }
  ...
]
}


Return error example:

{"code":xxx,"message":"Illegal device"}

Send command to device

Description

Send command to device.

Request URL

See the unique request URL.Method = jimi.open.instruction.send

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei
inst_param_json string Yes - Command message json character string

inst_param_json description:

Parameter Type Required Remark Description
inst_id string Yes - Command code
inst_template string Yes - Command template
params array Yes - Command params string Array
is_cover boolean NO false Whether cover the existed offline command or not true-cover false-not cover

Example:

{"inst_id": "113","inst_template":"RELAY,1#","params":[],"is_cover":"true"}
{"inst_id": "114","inst_template":"RELAY,0#","params":[],"is_cover":"true"}


User-defined command:

{"inst_id": "96","inst_template":"{0}","params":["STATUS#"],"is_cover":"true"}

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string Result

Correct return example:

{
  "code": 0,
  "message": "command is successfully sent.",
  "result": null
}



Return error example:

{
  "code": 12005,
  "message": "Fail to send command. Result code:226",
  "result": null
}



Get results of command execution

Description

Get results of sending command.

Request URL

See the unique request URL.Method = jimi.open.instruction.result

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
codeId string Command code
code string Command sent
content string Content replied by device
isExecute string Command status 0: execution failed, 1: successful execution, 3: to be sent, 4: canceled
isOffLine string Time, format:yyyy-MM-dd HH:mm:ss
sender string Sender
receiveDevice string Received imei
isOffLine string 0: online 1: offline
idsource string Command description

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "codeId": "99",
      "code": "status#",
      "content": "Parameter error",
      "isExecute": "4",
      "sendTime": "2017-06-19 11:46:00",
      "sender": "jimitest",
      "receiveDevice": "868120111111117",
      "isOffLine": "1",
      "idsource": "User-defined command"
    }
  ]
}


Return error example:

{"code":xxx,"message":"Illegal device"}

Receive Notification

Description

Third-party platform should provide an URL address to receive the notification(please contact us and provide the URL manually), JIMI server will push the notification by sending a HTTP request using this URL.

Message service List

Message Type Description
jimi.push.device.alarm Alarm data

Request content

Key Type Description
msgType string Message type, corresponding to the message service list
data string The content of the message, corresponding to msgType

Message content ( jimi.push.device.alarm)

Alarms pushed are as follows:


Key Type Description
Type string Device imei
deviceName string String
alarmType string Alarm type
alarmName string Alarm name
lat string Latitude
lng string Longitude
alarmTime string Alarm time, format (yyyy-MM-dd HH: mm: ss)

E.g:

Parameter1:
Key = msgType
Value = jimi.push.device.alarm

Parameter2:
Key = data
Value =  {
    "imei": "868120145233604",
    "deviceName": "868120145233604",
    "alarmType": "2",
    "alarmName": "Power off alarm",
    "lat": 40.65615416521587,
    "lng": 109.89894039833524,
    "alarmTime": "2017-05-08 12:00:00"
  }


Get device alarm list

Description

Get device alarm list.
Time range of searching criteria should be within 1 month.
Return maximum 1000 rows.

Request URL

See the unique request URL.Method = jimi.device.alarm.list

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei
alertTypeId string No - If not specify alertTypeId, all alert type will return.
begin_time date No - If not provide begin_time & end_time, returns latest 50 alerts of last 1 month.
end_time date No -

Response:

Key Type Description
code int Return code:
0: return correctly
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data
DeviceName Device Name Command code
IMEI string IMEI
model string Device Model
account string Account
account string Account
account string Alert type
alertTime string AlertTime
positioningTime string Time of alert positioning
lng double Longitude
lat double Latitude

Correct return example:

{
  "code": 0,
  "message": "success",
  "result": [
    {
      "deviceName": "ABC-34352",
      "IMEI": "343503422910345",
      "model": "GT06N",
      "account": "test1234",
      "alertTypeId": "1002",
      "alertType": "ACC On",
      "alertTime": "2019-03-14 14:02:03",
      "positioningTime": "2019-03-14 14:02:03",
      "lat": 22.577144898887813,
      "lng": 113.91674845964586
    }
  ]
}


Return error example:

{"code":xxx,"message":"Illegal device"}

Send command (for scooter device)

Description

Send command to scooter device.

Request URL

See the unique request URL.Method = jimi.scooter.instruction.send

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - Device Imei
cmd_code string Yes - Command send to device, for example:
To enable scooter, cmd_code can be set as: ENABLE# To lock scooter, cmd_code set as:LOCK# Note, sign # is required.

Response:

Key Type Description
code int Return code:
100: Success
200:Invalid parameter
300: Device is offline
301:Device unregistered
400:Network unavailable
600: HTTP request timeout
message string Description of sending command result.

Success example:

{
  "code": 100,
  "message": "Success"
}


Success example:

{
  "code": 200,
  "message": "Invalid parameter"
}


Get detail information of scooter

Description

Get detail information and status of device.

Request URL

See the unique request URL.Method = jimi.scooter.device.detail

HTTP request method

POST

Request parameters

(1) Common parameters

(2) Private parameters


Parameter Type Required Remark Description
access_token string Yes - Accesstoken: used for identifying legal third party
imei string Yes - IMEI of scooter, multiple scooter Separated by commas, for example: 350583223422451,350583223422452

Response:

Key Type Description
code int Return code:
0: return success
Other: failure. Refer to the error code description
message string If code is not 0, there will be a corresponding error message
result string The returned data(json)

Result list:

Key Type Description
deviceImei string IMEI of IoT module
realtimeStatus json DLCC DLCC status
0 - OFF
1 - ON
brake Brake status
0 - OFF
1 - ON
settingBrakeLight Setting brake light status
0 - OFF
1 - ON
settingFrontLight Setting front light status
0 - OFF
1 - ON
realFrontLight realFrontLight front light status
0 - OFF
1 - ON
realBrakeLight Real brake light status
0 - OFF
1 - ON
charge Charge status
0 - OFF
1 - ON
acceleratorStatus 0 - OFF
1 - ON
motoStatus 0 - OFF
1 - ON
workingMode Driving mode.
0 - Disability mode
1 - Lock mode
2 - Enabling mode
3 - Charging mode
4 - Maintenance mode
realtimeData json batteryLevel BAT level, for example, if BAT level = 50%, batteryLevel value is 50.
current Output current
speed Speed(Hall)
voltage BAT voltage
batteryCycle Battery cycle
totalOdometer Total mileage
currentOdometer Mileage of current trip(before disabled).
batteryTemperature °C
remainingMileage Remaining mileage
scooterProperties json ECUVersion ECU version
batteryCapacity Battery capacity
batteryVoltage Scooter rated voltage
firmwareVersion Firmware version
scooterVersion scooterVersion
speedLimit Scooter maximum speed
IoT 0 - OK 1-error
scooterError json
accelerator 0 - OK 1-error
battery 0 - OK 1-error
brakeHandlebar 0 - OK 1-error
controller 0 - OK 1-error
dashboard 0 - OK 1-error
voltage 0 - OK 1-error
Motor 0 - OK 1-error
IoTModule json gpsStatus 0 - GPS not available
1 - GPS positioning
course Direction of positioning
satellite Satellite number
gpsSpeed Speed
gpsTime Positioning time
positioningType GPS
LBS WIFI
Latitude Latitude
gsmSignal 0 - No signal
1 - Extremely week
2 - Week
3 - Strong
4 - Extremely strong
mCC mCC
mNC mNC
BluetoothMac string
iccid string
imsi string
batteryVoltage Battery voltage

Correct return example:

{
  "code": 0,
  "msg": "Operation success.",
  "result":
    {
      "deviceImei": "860425040472944",
      "scooterError": {
        "IoT": 0,
        "accelerator": 0,
        "battery": 0,
        "brakeHandlebar": 0,
        "controller": 0,
        "dashboard": 0,
        "motor": 0,
        "voltage": 0
      },
      "scooterProperties": {
        "ECUVersion": "0.1",
        "batteryCapacity": 22834,
        "batteryVoltage": 36,
        "bluetoothVersion": "2.1",
        "firmwareVersion": "c.0",
        "scooterVersion": "3.0",
        "speedLimit": 50
      },
      "realtimeData": {
        "totalOdometer": 14592,
        "batteryCycle": 512,
        "batteryLevel": 56,
        "batteryTemperature": 23,
        "current": 614.39,
        "currentOdometer": 217.6,
        "remainingMileage": 69.2,
        "speed": 99.86,
        "voltage": 460.94
      },
      "realtimeStatus": {
        "DLCC": 0,
        "DLCCStatus": 0,
        "acceleratorStatus": 0,
        "brake": 0,
        "settingBrakeLight": 1,
        "charge": 0,
        "settingFrontLight": 0,
        "realFrontLight": 0,
        "motoStatus": 0,
        "realBrakeLight": 0,
        "workingMode": 0
      },
      "drivingSetting": {
        "DLCC": 0,
        "drivingMode": 2,
        "lightMode": 0,
        "quickStart": 1,
        "speedLimit": 30,
        "speedUnit": 0
      },
      "IoTModule": {
        "imsi": "0460045394000271",
        "iccid": "89860433231880390271",
        "BluetoothMac": "000000000000",
        "satellite": 11,
        "course": 0,
        "gpsMode": 0,
        "gpsSpeed": 0,
        "gpsTime": "2019-05-09 18:41:12",
        "lAC": 0,
        "latitude": 22.577137,
        "longitude": 113.916756,
        "mCC": 0,
        "mNC": 0,
        "positioningType": "GPS",
        "gsmSignal": 4,
        "gpsStatus": 0,
        "batteryVoltage": 4.15
      }
    }
}


Success example:

{"code":xxx,"message":"Illegal device"}
