THImprove the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.
Improve the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE, UMTS & GSM Network
The device can receive and transmit data in the coverage of 4G, 3G, and 2G networks.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
WiFi Hotspot Feature
Form WiFi coverage on vehicle, so that other devices such as ECU can connect to network.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
RS485 Fuel Sensor (Optional)
Quickly get notified when fuel level is harshly changing.
RS485 Temperature Sensor (Optional)
Prevent rot and damage caused by excessive temperature.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
| GNSS | |
| Positioning system | GPS+WiFi |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -149dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤45sec |
| Cellular | |
| Communication network | LTE/UMTS/GSM |
| Frequency | JM-VL01LA: LTE: B1/B2/B3/B4/B5/B7/B8/B28AB UMTS/HSPA: 850/900/1900/2100 MHz GSM: 850/900/1800/1900 MHz JM-VL01E: |
| Power | |
| Battery | 450mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 4Gb+2Gb |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Physical specification | |
| Dimensions | 113.0 x 51.0 x 20.0mm |
| Weight | 105g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
| WiFi hotspot | 2.4GHz |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Vehicle Tracking
Fuel Monitoring & Control
Logistics
APPLICATIONS
Vehicle Tracking
Fuel Monitoring & Control
Logistics

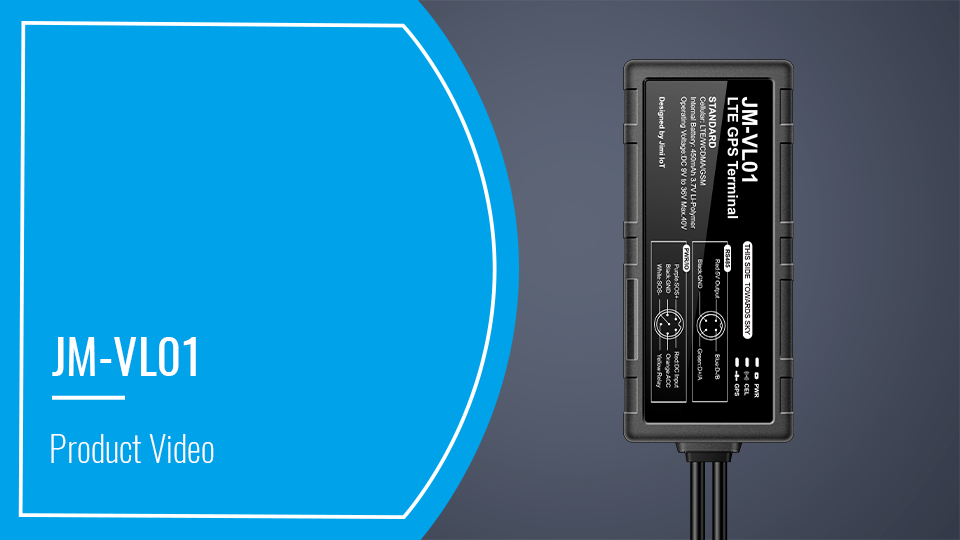

VIDEO
