JM-VL02

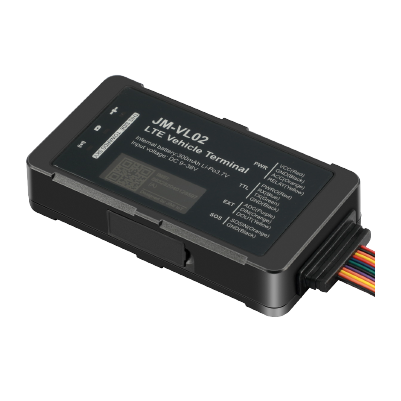

JM-VL02 LTE Cat M1 & NB2 Fleet Tracker

The JM-VL02 is our fleet management flagship, designed to handle industrial and commercial fleet applications ranging from rental agencies and public transportation to construction equipment and beyond. With ACC detection, SOS button, remote fuel/power cut-off, and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency. And, using cutting-edge LTE (Cat M1/NB-IoT) and GSM communications, the VL02 will be helping you maximize your fleet operations for years to come.
  • upfilesimg/image/15874334050.jpg

LTE: Cat M1 & NB2 & GSM

Driver Behavior Monitoring

Emergency SOS Button

ACC Detection - Ignition Status

Remote Cut-Off (Fuel/Power)

Multiple I/Os for Sensors/Peripherals


GSM Specification



Frequency

JM-VL02E

B5(850MHz)/B2(1900 MHz)

B8(900MHz)/B3(1800MHz)


GPRS

Class 12, TCP/IP
Memory 32+32Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error ±0.1ppm


LTE Specification


Operating band LTE Cat-M1/NB2: B1/B2/B3/B4/B5/B12/B13/B28/B66 (JM-VL02A)
LTE Cat-M1/NB2: B1/B3/B5/B8/B18/B19/B20/B26 (JM-VL02E)
Data transmission LTE Cat M1: Max. 588kbps (DL), Max. 1.119Mbps (UL)
LTE Cat NB2: Max. 127kbps (DL), Max. 158.5kbps (UL)
EGPRS:  Max. 296kbps (DL), Max. 236.8kbps(UL)


Interfaces


Digital Inputs ACC, IN1
SOS
Digital Output Relay, OUT1
5V Digital Output 5V controllable output with 500mA drive current
UART TTL
ADC ADC detection range: 0-30V
1-wire Interface Support 1-wire temperature sensor (Optional)
Cellular Antenna Internal only
GNSS Antenna Internal patch antenna
LED Indicators CEL(green) ,GNSS (blue), PWR(red)


GPS Specification


GPS chipset MTK high sensitivity chip
Frequency L1,1575.42MHz C/A code
GPS channel 66
Location accuracy <10 meters
Tracking sensitivity  -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start≤1sec
Avg. cold start≤32sec


Others


Battery 300 mAh, 3.7V Li-Polymer battery
Operating voltage 3V to 36V DC
Standby current ≤ 5 mA (battery-powered)
Operating temperature –20℃ to +70℃
Device dimension 105.5 X 57 X 21.8mm
Device weight 104g
