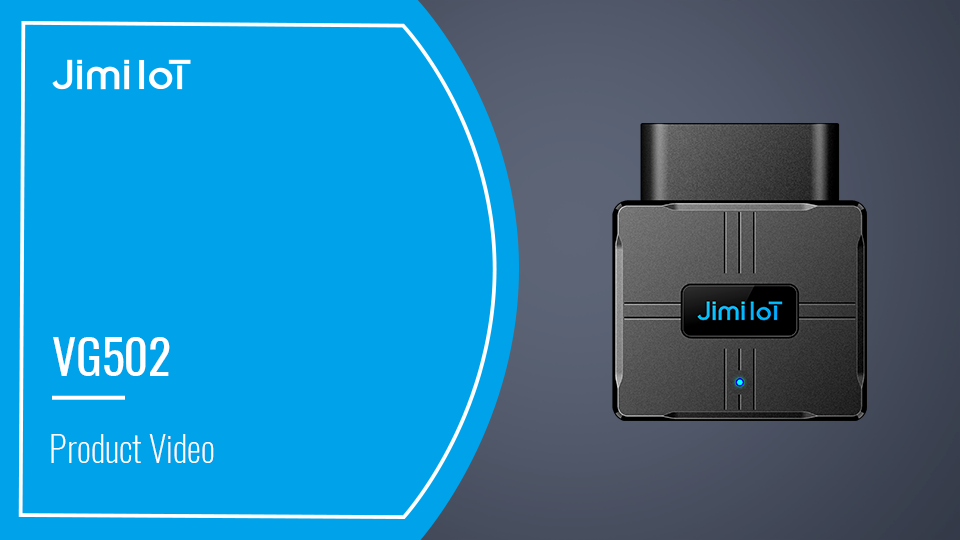

The VG502 is an easy-to-install OBDII GPS tracker designed for company/official cars, private cars, and usage-based insurance. Featuring the driving behavior analysis (DBA) leveraging the UBI-based algorithm, this device can accurately analyze any of 4 kinds of dangerous driving behavior and support the all-around monitoring of vehicles’ real-time status. With on-board diagnostics, multiple positioning systems, Bluetooth connectivity, and the suite of event-triggered alerts, the VG502 is an ideal solution for both fleet management and private use.
![](https://www.jimilab.com/wp-content/uploads/2022/10/VG502.png)
The VG502 is an easy-to-install OBDII GPS tracker designed for company/official cars, private cars, and usage-based insurance. Featuring the driving behavior analysis (DBA) leveraging the UBI-based algorithm, this device can accurately analyze any of 4 kinds of dangerous driving behavior and support the all-around monitoring of vehicles’ real-time status. With on-board diagnostics, multiple positioning systems, Bluetooth connectivity, and the suite of event-triggered alerts, the VG502 is an ideal solution for both fleet management and private use.
![On-Board Diagnostics On-Board Diagnostics](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/On-Board-Diagnostics-px4vpk3r4dat3h9bjpo3ty5by137g6q7q9zueiv0u8.png)
![GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/GPS-WiFi-LBS-Positioning、GPS-BDS-LBS-Wi-Fi-Positioning-px4vnv08s4z64tq2gh9ctvkdbzgcjuzntvla7jdm2o.png)
![Driving Behavior Analysis Driving Behavior Analysis](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Driving-Behavior-Analysis-px4vnjq6i4jq9i6gacdtzyeu7czxzhqvsbrgg7uc5c.png)
![Multiple Alerts Multiple Alerts](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Multiple-Alerts-1-px4vpha8jv6y4ndf06g84guy5vh3t3f0pw1dyoz7cw.png)
![Effortless Installation Effortless Installation](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Effortless-Installation-px4vnjq6i4jq9i6gacdtzyeu7czxzhqvsbrgg7uc5c.png)
![Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional) Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)](https://www.jimilab.com/wp-content/uploads/elementor/thumbs/Bluetooth-Configuration、Bluetooth-Accessory-Compatibility-Optional-px4vnhui4gh5ma96lbkkuyvx0l97k3jf42ghhnx4hs.png)
GNSS | |
Positioning system | GPS/BDS |
Positioning accuracy | <2.5m CEP |
Tracking sensitivity | -162 dBm |
Acquisition sensitivity | -148 dBm (cold) / -156 dBM (hot) |
TTFF (open sky) | Avg. hot start ≤1sec
Avg. cold start ≤32sec |
Cellular | |
Communication network | GSM |
Frequency | B2/B3/B5/B8 |
Power | |
Battery | 50mAh/3.7V |
Input voltage | 9-36VDC |
Interface | |
LED indication | 1 status indicator (Blue) |
SIM | Nano-SIM |
Data storage | 4+4MB |
OBD port | |
Connection | OBD II |
Data | K-Line, CAN Bus |
OBD protocols | ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
Physical specification | |
Dimensions | 61 x 52 x 26mm |
Weight | 55g |
Operating environment | |
Operating temperature | -20°C to 70°C |
Operating humidity | 5%~95%, non-condensing |
Feature | |
Sensors | Accelerometer |
Bluetooth | Support BLE 4.0 protocol |
Ignition detection | External power voltage |
Scenarios | Vehicle movement alert, Speeding alert, Geo-fence entry/exit, Vehicle battery detection, Power supply disconnection |
Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
