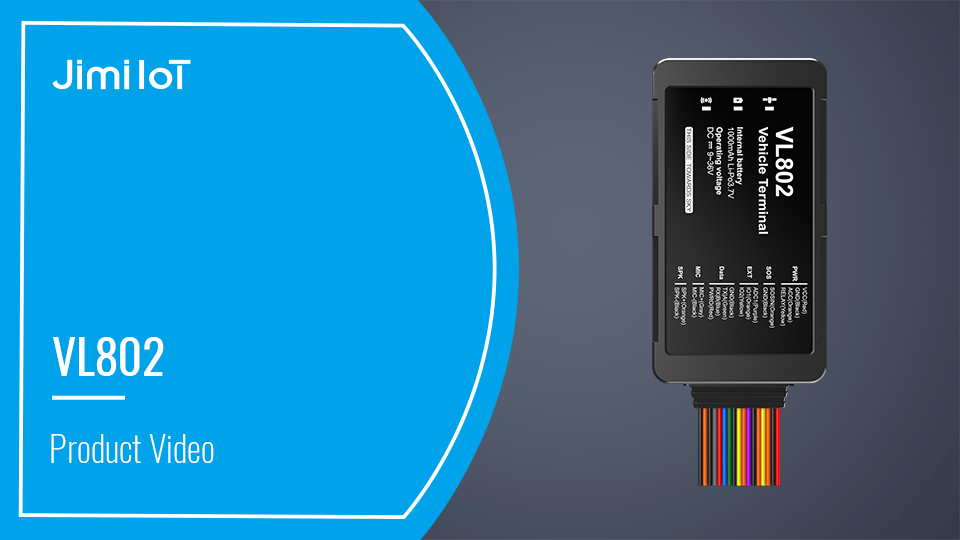

VL802
LTE Vehicle Terminal
The VL802 is an advanced 4G GPS tracker designed for the management of industrial and commercial fleets ranging from passenger cars and trucks to buses and beyond. This device’s two-way communication can help fleet managers improve their driver management strategies. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the suite of event-triggered alerts helps fleet managers monitor the status of their fleet in real-time. With RS485 interface and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Two-way Communication
Hands-free communication with your employee instead of using the phone!
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Ignition Detection
Constant, real-time ACC/ignition status from the vehicle.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Bluetooth Configuration
Fast and simple device configuration via app for iOS and Android.
Multiple Alerts
Instant alerts for atypical events such as impounding, geo-fence entry/exit, abnormal vibration, speeding, etc.
| GNSS | |
| Positioning system | GPS+BDS+WiFi |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -160dBm |
| TTFF (open sky) | Avg. hot start ≤1sec |
| Avg. cold start ≤32sec | |
| Cellular | |
| Communication network | LTE CAT1/GSM |
| Frequency | VL802-E: LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: 850/900/1800/1900MHz VL802-L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: 850/900/1800/1900MHz |
| Power | |
| Battery | 450mAh/3.7V industrial-grade Li-Polymer battery Optional: 1,000mAh/3.7V |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Green), Cellular (Blue), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 16+16MB |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Configurable I/O | 2 special I/Os can be configured as extra digital inputs or outputs |
| Physical specification | |
| Dimensions | 105 x 56 x 22mm |
| Weight | 120g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | SOS alert, Speeding alert, Abnormal vibration alert, Fatigue driving alert |
