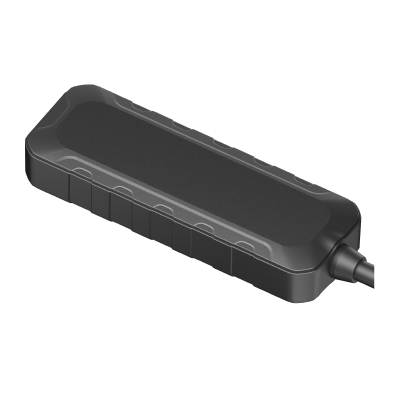

Wetrack Lite Vehicle GPS Tracker

Perfect for car rental, fleet management and logistics, the best-in-class GPS device Wetrack Lite is compact and lightweight, which only weights 26.6g. Featuring improved accuracy, it is designed specifically to make locating and routing vehicles as simple as possible. Hidden LED make the device “invisible” and drivers will never know it's there unless you tell them. ORDER NOW

Compact size: Be able to place it in various locations throughout the vehicle

ACC detection: Be aware of the ignition status whenever you need

IPX5 waterproof: Water-resistant to ensure stable operation in tough environment

Hidden LED: Whoever uses your car will never know he or she’s being tracked

GPS+LBS positioning: Allow the location to be pinpointed in real time or periodically

GPS+LBS positioning
Hidden LED
IPX5 waterproof
ACC detection
Multiple alarms
Compact size
Tracked by: SMS, APP, Web

GSM Specification
Communication system	GSM
GSM frequency	850/900/1800/1900MHz
GPRS	Class 12, TCP/IP
Memory	32 + 32 Mb
Phsase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±2dBm GSM1800/GSM1900:30±2dBm
Max frequency error	±0.1ppm
Receive sensitivity	Class II RBER2%(-102dBm)
GPS Specification
Chipset	High sensitivity GPS chips
Frequency	GPS L1, 1575.42MHz
Channel	66
Location accuracy	<10 meters
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ≤1sec
TTFF (open sky)	Avg. cold start ≤32sec
Function & Package
GSM/GPS antenna	Built-in quad band GSM antenna, GPS ceramic antenna
LED indicator	GPS(blue),GSM(green)
Working voltage/current	9-36VDC/32mA(12VDC)18mA(24VDC)
Standby current	≤5mA
Operating temperature	-20℃ ~+70 ℃
Waterproof rate	IPX5
Battery	100mAh / 3.7V industrial grade lithium battery
Device weight	26.6g
Device dimension	73.8(L)× 25.9(W)× 12.2(H)mm
