JM-LL02

Cat M1/NB2 Versatile Asset GNSS Tracker
Asset GPS Tracker Device

The JM-LL02 is a 4G asset GPS tracker device designed for rugged applications. Featuring a large 6,000 mAh battery and a strong magnetic mount, this device is perfect for a wide range of deployments where long standby time and simple installation are key. A light sensor can alert when the device is removed, further adding to the security and peace-of-mind offered by the LL02. For greater convenience, this device can also be directly configured via Bluetooth, eliminating the need for wired or platform-based configuration.

JM-LL02
Cat M1/NB2 Versatile Asset GNSS Tracker
Asset GPS Tracker Device

The JM-LL02 is a 4G asset GPS tracker device designed for rugged applications. Featuring a large 6,000 mAh battery and a strong magnetic mount, this device is perfect for a wide range of deployments where long standby time and simple installation are key. A light sensor can alert when the device is removed, further adding to the security and peace-of-mind offered by the LL02. For greater convenience, this device can also be directly configured via Bluetooth, eliminating the need for wired or platform-based configuration.

FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
6,000mAh Rechargeable Battery、10,000mAh Rechargeable Battery、2,500mAh Rechargeable Battery
6,000mAh Rechargeable Battery
High-capacity battery supports long standby applications, and is easily recharged for re-deployment.
Strong Magnetic Base
Strong Magnetic Mount
Near-zero installation; the LL02 tightly and effortlessly fastens to most metal surfaces.
Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)
Bluetooth Configuration
Fast and simple device configuration via app for iOS.
IP67 Dust & Water Resistance
IP67 Dust and Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Magnetic Charging
Magnetic Charging
A handy and efficient charger connects easily and charges quickly.
Multiple Working Modes
Multiple Working Modes
Configurable working modes according to your actual demands.
Tamper Alert、Cover Dismantlement Alarm
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
GNSS
Positioning system GPS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤40sec
Cellular
Communication network LTE/GSM
Frequency LTE Cat M1/NB2: B2/B4/B5/B12/B13/B66
GSM: 850/1900MHz
Power
Battery 6,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes Mode 0: Standby mode
Mode 1: Tracking mode
Mode 2: Power-saving mode
Standby time Up to 1.5 years in power-saving mode
Interface
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Nano-SIM
Data storage 32+32Mb
Tamper proof Light sensor
Magnetic charging port Used for charging and debugging
Physical specification
Dimensions 85.0 x 58.0 x 29.0mm
Weight 158g
Operating environment
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IP67
Feature
Sensors Accelerometer, Light sensor
Bluetooth Support Bluetooth 5.0
Scenarios Low battery alert, Tamper alert, Vibrating alert, Over-speed alert, Geo-fence entry/exit
Specialties On/off button disabling

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.

APPLICATIONS
Asset Tracking
Vehicle Rental
Logistics
APPLICATIONS
Asset Tracking
Vehicle Rental
Logistics

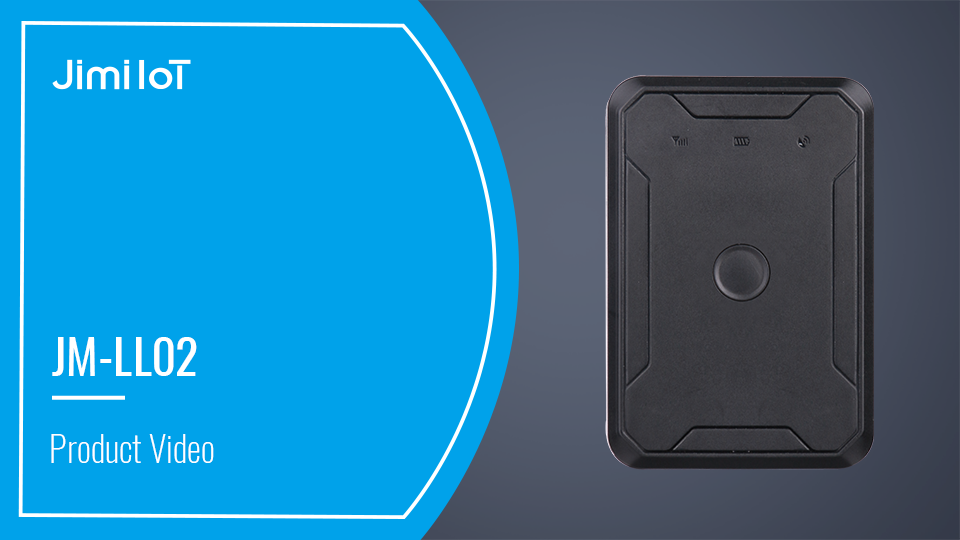

VIDEO
