AT1 Asset GPS Tracker

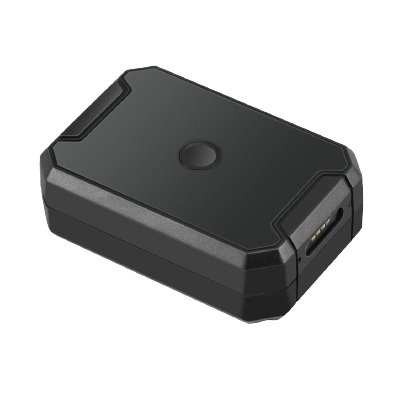

AT1 GPS Asset Tracker

The AT1 is a simple but functional GPS tracker designed for a variety of uses including fleet services, freight operations, high-value asset tracking, and special needs individuals. A rechargeable 6000mAh internal battery allows for an operation time of around 25 days, and its durable, waterproof casing is perfect for even the toughest environments.  ORDER NOW
GPS & LBS & WIFI positioning
Allow the location to be pinpointed in real time or periodically
Noise detection alert
Alert will be triggered if sound reaches 50 decibels.
IP67 dust and water resistance
Water-resistant case to ensure stable operation in tough environment
Strong magnet mount
Strong magnetic cover allowing for flexible mounting on vehicles or assets
6000mAh rechargeable battery
Built-in MCU and high capacity battery ensure sufficient power supply and management
Tamper alert
With light sensor, it will send alarm once disassembled or detects light

GSM Specification
GSM frequency 850/900/1800/1900MHz
Receive sensitivity Class II RBER2%(-104dBm)
GPRS Class 12, TCP/IP
Memory 32+32Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error ±0.1ppm
Receive sensitivity Class II RBER2%(102dBm)

GPS Specification
GPS chipset MTK high sensitivity chip
Frequency L1, 1575.42MHz C / A code
GPS channel 32
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start≤1 sec
Avg. cold start≤32 sec

Other
Antenna Built-in GPS quad-band antenna, GPS ceramic antenna, WIFI antenna
LED Power (red), GPS(blue),GSM(green)
Operating temperature -20℃～ 70℃
Working voltage/current 3.7V/60mA
Standby time 25 days
Battery 6000mAh/3.7V industrial Li-Polymer battery
Device Dimension 85.0 (L)×58.0 (W)×29.00(H)mm
Device Weight 161g；230g (with magnetic cover)
Working time

100 hours (upload GPS data every 10 seconds)



Leaflet 751.43 KB
User manual 4.15 MB
Video
