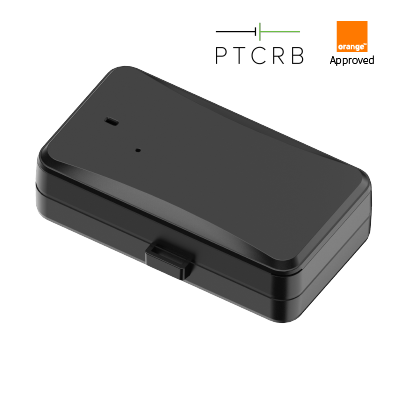

JM-LL01

LTE Cat M1 & NB2 Asset GNSS Tracker

Description

The JM-LL01 is a Cat M1/NB-IoT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

* The label is associated to devices which have been tested end-to-end by Orange in the laboratories.

JM-LL01

LTE Cat M1 & NB2 Asset GNSS Tracker

Description

* The label is associated to devices which have been tested end-to-end by Orange in the laboratories.

FEATURES

SPECIFICATIONS

DOWNLOADS

GPS & LBS Positioning

A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.

LTE Cat M1/NB2 & GSM

Communications over IoT-specific LTE networks, with reliable 2G GSM fallback.

10,000mAh Rechargeable Battery

High-capacity battery is ideal for long standby applications, and is easily recharged for re-deployment.

Tamper Alert

Receive a tamper alert when the light sensor detects device removal.

IP65 Dust and Water Resistance

Rugged design ensures continued optimal performance, even in the toughest conditions.

Bluetooth Configuration

Fast and simple device configuration via app for iOS.

Strong Magnetic Base

Fast and easy installation via strong magnetic mount or eyelets.

Multiple Working Modes

Configurable working modes according to your actual demands.

GNSS
Positioning system	GPS+LBS
Positioning accuracy	＜2.5m CEP
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ≤1sec Avg. cold start ≤40sec
Cellular
Communication network	LTE/EGPRS
Frequency	LTE Cat M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66 EGPRS: 850/900/1800/1900 MHz
Power
Battery	10,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes	Mode 0: Standby mode Mode 1: Tracking mode Mode 2: Power-saving mode
Standby time	Up to 3 years in power-saving mode
Interface
LED indication	1 status indicator (Red), 4 battery indicators (Blue)
SIM	Standard-SIM
Data storage	32+32Mb
Tamper proof	Light sensor
Physical specification
Dimensions	109.0 x 61.0 x 30.5mm
Weight	297g
Operating environment
Operating temperature	–20℃ to +70℃
Operating humidity	5%～95%, non-condensing
IP rating	IP65
Feature
Certificates	FCC, CE, PTCRB, AT&T, TELEC
Sensors	3-Axis Accelerometer
Scenarios	Low battery alert, Tamper alert, Vibrating Alert, Over-speed alert, Cover removal alert, Installation alert, Geo-fence

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.

APPLICATIONS

Vehicle Rental

Fleet Management

Logistics

APPLICATIONS

Vehicle Rental

Fleet Management

Logistics

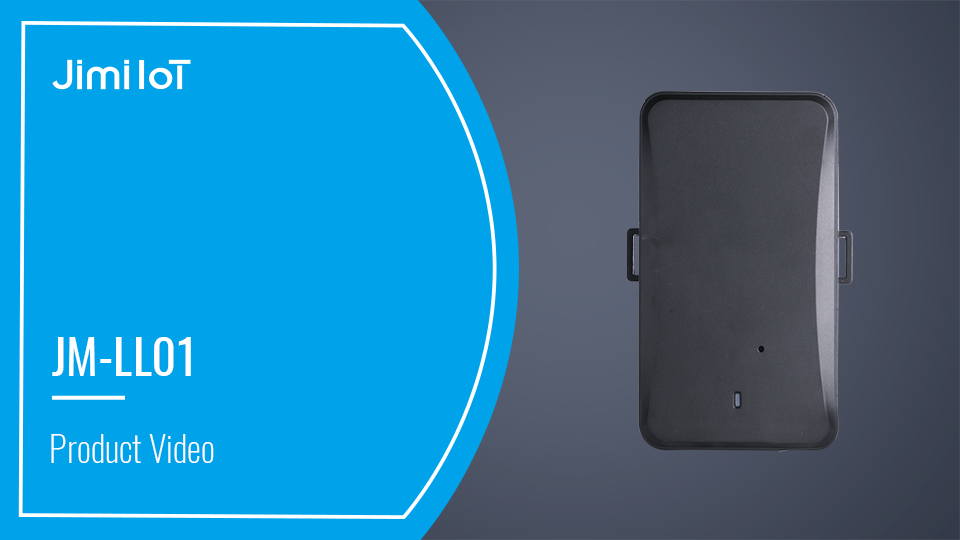

VIDEO
