LL302

4G LTE Cat 1 Asset GNSS Tracker
Wireless Asset Tracker

Designed for vehicle & asset tracking, LL302 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our cloud platform and mobile App, LL302 is ideal for remote monitoring of users’ targets, and it’s also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.

LL302
4G LTE Cat 1 Asset GNSS Tracker
Wireless Asset Tracker

Designed for vehicle & asset tracking, LL302 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our cloud platform and mobile App, LL302 is ideal for remote monitoring of users’ targets, and it’s also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.

FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
LTE Cat M1_NB2 & GSM、LTE & GSM Network
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Tamper Alert、Cover Dismantlement Alarm
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
Strong Magnetic Base
Strong Magnetic Base
Near-zero installation; the LL302 tightly and effortlessly fastens to most metal surfaces.
Vibrating Alert
Vibrating Alert
You'll get notified when the device detects the abnormal vibration of vehicles.
Multiple Working Modes
Multiple Working Modes
Configurable working modes according to your actual demands.
Temperature_Humidity Sensor
Temperature/Humidity Sensor(Optional)
Optional peripherals to monitor temperature and humidity to gain visibility into your operations and help save money.
Door Status Detection (Optional)
Door Status Detection (Optional)
Automatic notification of door openings or unauthorized movements.
GNSS
Positioning system GPS+BDS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec
Cellular
Communication network LTE Cat 1/GSM
Frequency LL302-E:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8LL302-L:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8
Power
Battery 6,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes Mode 1: Regular GPS mode
Mode 2: Tracking mode
Mode 3: Power-saving mode
Standby time Up to 1 year in power-saving mode
Interface
LED indication GNSS (Blue), Cellular (Green), Power (White)
SIM Micro-SIM
Tamper proof Light sensor
Physical specification
Dimensions 95.0 x 59.0 x 29.2mm (with magnet)
Weight 233g (with magnet)
Operating environment
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IPX5
Feature
Temperature detection –20℃ to +70℃ (±0.2℃)
Humidity detection 5%~95% (±1%RH)
Sensors Accelerometer, Light sensor, Temperature & humidity sensor(Optional), Hall effect sensor
Scenarios Low battery alert, Tamper alert, Vibrating Alert

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.

APPLICATIONS
Vehicle Rental
Logistics
Asset Tracking
APPLICATIONS
Vehicle Rental
Logistics
Asset Tracking

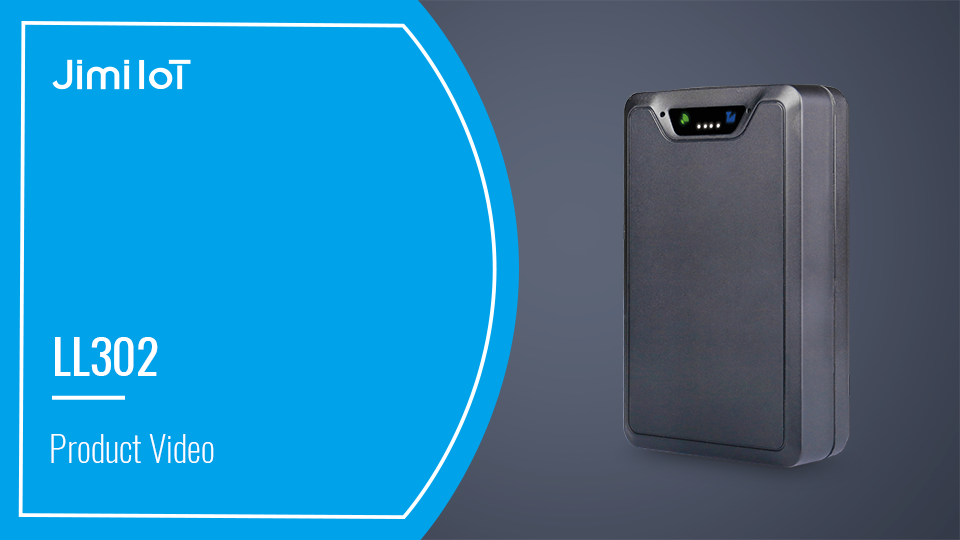

VIDEO
