JC261

An Upgrade of JC400 with AI

Description

An upgrade of JC400, the JC261 4G dash camera allows you to add a driver-facing, inward-facing, or backup camera as needed. The on-device camera can monitor the road ahead, while the peripheral camera can monitor the driver, the cabin, or the rear. A number of safety features are included in the system, including DMS, ADAS, exception alerts, and more. Furthermore, the 4G capability of the device enables seamless video streaming, live audio alerts, route replay, and video history playback. With all of these features, fleet managers can coach drivers based on data and improve operations to unlock more benefits, whether they’re managing government, logistics, ride-hailing, or taxi fleets.

JC261

An Upgrade of JC400 with AI

Description

Ⅹ

Product Discontinued

Add Your Heading Text Here 5 seconds...

Can't wait? Click here to manually redirect.

FEATURES

SPECIFICATIONS

DOWNLOADS

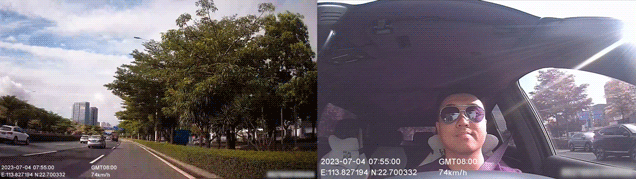

Video Surveillance

Powerful LTE connectivity enables the live monitoring of the vehicle's interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.

Dual-Channel Recording

Monitor the road ahead through the integrated lens and what is happening in the cab, in the rear, to the side, or to the driver through a peripheral camera to meet your specific business needs.

Dual-Channel Recording

Monitor the road ahead through the integrated lens and what is happening in the cab, in the rear, to the side, or to the driver through a peripheral camera to meet your specific business needs.

Driver Assistance (ADAS)

The ADAS algorithm enables the device to monitor incidents related to following distance, near collisions, lane keeping, etc., and warn the driver in real time.

Driver Monitoring (DMS) (Optional)

The DMS camera is able to detect fatigue and distracted driving, such as texting while driving, yawning, smoking, or fiddling with the stereo, as well as the exception of the driver not being in position.

Driver Monitoring (DMS) (Optional)

Fast Integration

If you don’t have a management platform, you can choose to use our ready-to-use Tracksolid Pro to manage your fleets and monitor your drivers in real-time and afterwards. Or if you would like to use your own platform or any third-party platform or to the intelligent transport system (ITS), we can provide an API/IoT Hub to facilitate fast and seamless integration.

Specification
Network
Standard	4G LTE Cat.4
WiFi	2.4GHz, Support AP Mode/STD Mode/WiFi Direct
Bluetooth	BLE 4.0
Band	Eurasian Version LTE-FDD: B1/B3/B5/B7/B8/B19/B20 LTE-TDD: B38/B39/B40/B41 (100M) WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
Band	American Version LTE-FDD: B2/B3/B4/B5/B7/B12/B17 LTE-TDD: B38/B41 (100M) WCDMA: B2/B4/B5 GSM: B2/B5/B8
Camera
Front Camera (Main)	1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Peripheral Camera (Optional )	CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV)
	CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV)
	CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV)
	JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV)
Video Format	.ts
Configuration
GNSS	GPS/BDS
Sensor	3-axis
Microphone	Support
Speaker	Support
Interface	Micro USB1, SOS1, TTL1, Relay1
Memory Support	TF card (Up to 256GB)
SIM Card Type	Nano
LED Indication	Red (Power), Blue (Cellular), Green (GNSS)
Others
Power Supply	Power cable: B+/ACC/GND
Operating Voltage	DC 9–30V
Operating Temperature	–20°C to +65°C
Storage Temperature	–30°C to +85°C
Device Weight	233g
Device Dimension	1096952mm
Certifications	CE/FCC/RoHS

* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.

APPLICATIONS

Taxi Service

Online Ride-hailing

Logistics Service

APPLICATIONS

Taxi Service

Online Ride-hailing

Logistics Service

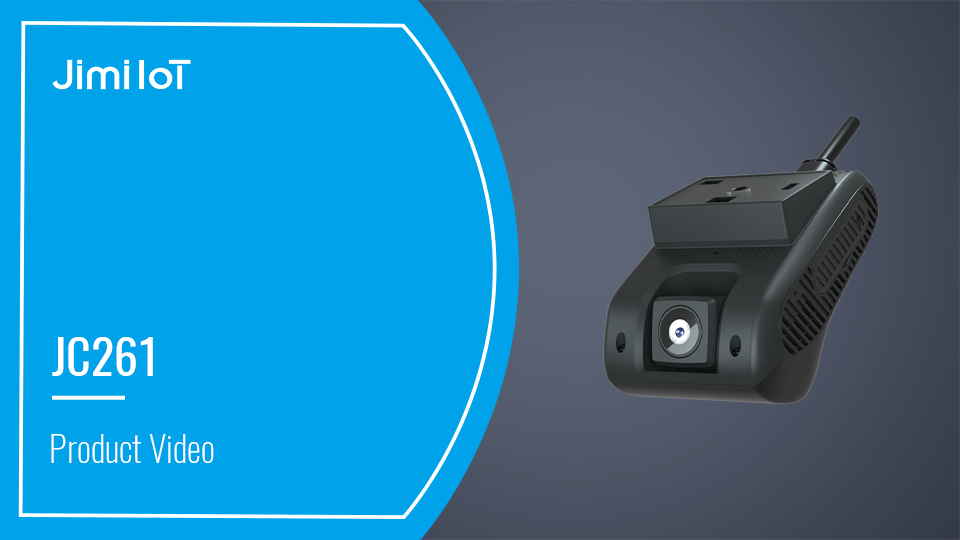

VIDEO
