JC400 Dual Channel DashCam_Shenzhen Jimi IoT Co., Ltd.

Quotation

Dual Camera Lens The JC400 dashcam features an integrated road-facing camera and a detachable cabin-facing camera that records the cab, enabling you to simultaneously monitor the road ahead and the situation in the cabin.

Driving Behavior Monitoring Leveraging data on the driving behavior of your drivers, including harsh acceleration, harsh braking, and sharp turn will help reduce accident rate and improve fuel economy of your fleet.: Harsh Acceleration

Hard Braking

Sharp Turn

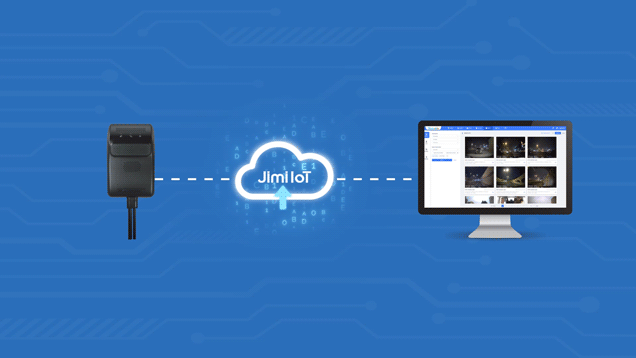

Event Video to Cloud In the event of a serious accident, collision or improper driving behavior, the JC400D will, as required, capture event videos and send them to the cloud for storage. With a 4G connection, you can have faster data speeds and wider network coverage, enabling you to respond or take action immediately.

Panic Button

In the event of an accident or other emergency, one-press of the panic SOS will trigger the device to help the driver or passenger initiate an emergency call to pre-set SOS numbers and the back office until the call is answered and to flag important video footage for review. The external SOS button can be installed within easy reach of the driver or passenger for quick activation, giving peace of mind to all.

Do-it-yourself Installation The detachable cabin-facing camera supplied in the JC400 packing list is easy enough to install and use. No need to pay a fortune for professional mechanic, you can install it yourself on the windshield or place it directly on the dashboard or anywhere you like.

4G+3G+2G+WIFI

4G+3G+2G+WIFI More choices, a wider range of data networks

1080P Video Resolution

1080P Video Resolution Crystal-clear, 1080P resolution video

Panic Button

Panic Button Emergency button for driver/passenger safety

Locked SIM/TF Card Design

Locked SIM/TF Card Design Give added protection to critical video footage, the SIM/TF card, and your privacy

Live Tracking

GPS Tracking Enable real-time tracking of your fleet and provide accurate location data for analysis and stolen vehicle recovery

2x Cameras

2x Cameras Monitor what happens on the road and in the cabin at the same time

G-Sensor

G-Sensor 6-axis acceleration sensor

Android 8.1 Go

Android 8.1 Go Powerful system as guarantee, more flexible operation speed

Open I/O

RS232 (Optional) Support fuel level sensor, temperature sensor, card reader, etc..

Related Products

Application Area

Ride Hailing
Taxi Operating
Car Insurance
Commercial Fleet

Learn more about what we do Contact Us

Network Connection	Wi-Fi	802.11 b/g/n	2.4 GHz, Hotspot
	Eurasian Version	GSM & WCDMA & 4G	GSM: 850/900/1800/1900MHz WCDMA: B1/B2/B5/B8 4G FDD: B1/B3/B5/B7/B8/B19/B20 TDD: B38/B39/B40/B41 (100M)
	American Version	GSM & WCDMA & 4G	GSM: 850/1800/1900MHz WCDMA: B2/B4/B5 FDD: B2/B3/B4/B5/B7/B12/B17 TDD: B38/B41 (100M)
	Note: The difference in EurasianVersion and American Version lies in hardware. It is recommended to debug by version.
Hardware	CPU		ARM Cortex A53 @1.4GHz
	OS	Android	Android 8.1 GO
	Flash memory	RAM+ROM	LPDDR3 1GB+eMMC 16G
	Front camera		AHD, 1080P, dynamic frame rate, 118°horizontal viewing angle
	Detachable camera		AHD, 720P, dynamic frame rate, 100° horizontal viewing angle
	GNSS module	GPS+BDS	Built-in ceramic antenna
	G-Sensor	Accelerometer, Gyroscope	6 axis
	MIC & Speaker	Built-in
	TF card	Max 128GB
I/O Configuration	ACC	Ignition detection
	Relay	Immobilization	Remote engine cut-off
	UART I/O (Extended I/O)	Open for RFID reader, fuel sensor, load sensor, temperature sensor
	SOS	Panic button
Power	Supply voltage	DC9-30V	Suitable for cars, trucks, buses, electric automobiles, etc.
Power	External Battery	External Battery 450mAh	For emergency situation when car battery is disconnected
Size	Dimension	1096952 mm
Size	Weight	225g

Standard Accessory

Panic Button x 1
Manual x 1
External Battery x 1
Cap Screw x 1
Cover Screw Driver x 1
Cap Screw x 2
Power Cord x 1
Mount Base x 1
3M Sticker x 1
Relay

use manual	PDF
Leaflet	PDF
Installation Video

Real-time video Historical video Remote video/picture Event video Device offline

Real-time video problem

After customers get the equipment, some devices have been unable to achieve real-time video function: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

All the devices under the customer account suddenly cannot provide real-time video, and the customers receiving feedback are all in the same or adjacent areas: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

After customers get the equipment, some devices have been unable to achieve real-time video function.: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Historical video problem

When some devices view the historical video on the APP or Web side, the file is empty after the customer searches, or cannot be played: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Customer feedback is not able to view the historical video of JC200's built-in camera on the platform side: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Remote video/picture problem

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Customer feedback is not able to view the historical video of JC200's built-in camera on the platform side: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Event video problem

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Customer feedback is not able to view the historical video of JC200's built-in camera on the platform side: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Device offline problem

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

The client can only view the historical video of the device on one side of the Web or APP: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.

Customer feedback is not able to view the historical video of JC200's built-in camera on the platform side: Problem analysis

- It is suspected that the RTMP server logged on by the device has a problem, resulting in the device logged on to this server cannot perform real-time video.

- The function may return to normal after a period of time, but the possibility of a recurrence is not ruled out.

The Solution

- In this case, it is necessary to give immediate feedback to the FAE, so that the r&d team can troubleshoot server problems as soon as possible and find the root cause to avoid causing major problems.

- It is necessary to provide the LOG file of one device in the country or region where the device is located for the convenience of research and analysis.
