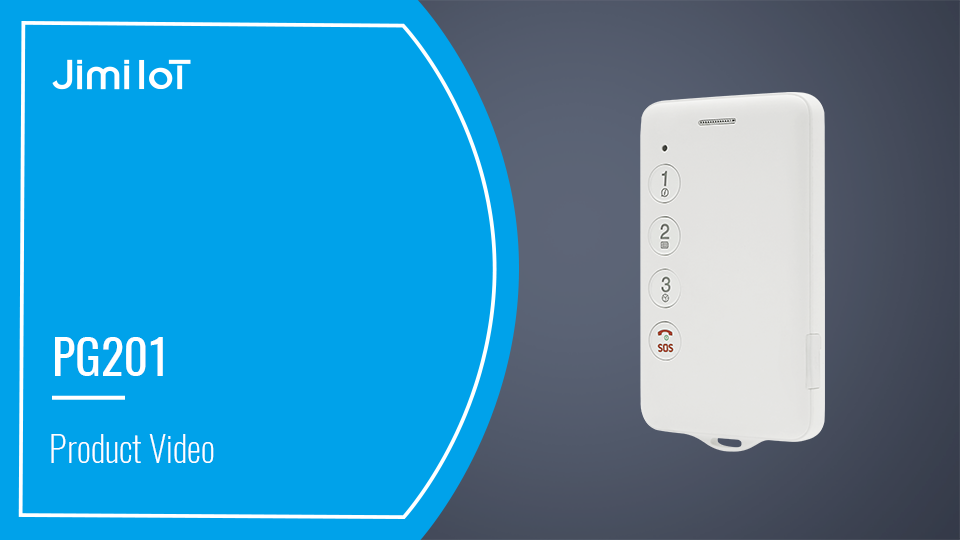

PG201
Intelligent Personal Tracker
GPS & BDS & LBS & Wi-Fi Positioning
A synergy of multiple positioning systems ensures the location to be accurately displayed on the cloud platform.
Intelligent Positioning Modes
Support timing, specific period and instant positioning.
Two-way Communication
Enable workers to make speed-dials to three important contacts with this device.
IPX5 Water Resistance
Rugged and reliable design ensures stable operation in tough conditions.
Panic Button
Enable workers to ask for immediate help with a single press.
Extra-Long Standby
Featuring a 1,200mAh battery, this device supports up-to-8-day standby time.
| GNSS | |
|
Positioning system |
GPS+BDS+LBS+WiFi |
|
Frequency |
L1 |
|
Positioning accuracy |
＜10m |
|
Tracking sensitivity |
-162dBm |
|
Acquisition sensitivity |
-148dBm |
|
TTFF (open sky) |
Avg. hot start ≤1sec |
|
Avg. cold start ≤32sec |
|
| Cellular | |
| Communication network | GSM |
| Frequency | 850/900/1800/1900 MHz |
| Power | |
| Battery |
1,200mAh/3.7V industrial-grade Li-Polymer battery |
| Operating Voltage | 3.7VDC/75mA |
| Interface | |
| LED indication | GNSS (Blue), GSM (Green), Power (Red) |
| SIM | Nano-SIM |
| Physical specification | |
| Dimensions | 102.5 x 62.0 x 9.0 mm |
| Weight | 70g |
| Operating environment | |
| Operating temperature | –20℃ to +60℃ |
| IP rating | IPX5 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios |
Low battery alert, SOS alert, Geo-fence |
| Leaflet |
