JM-BL11

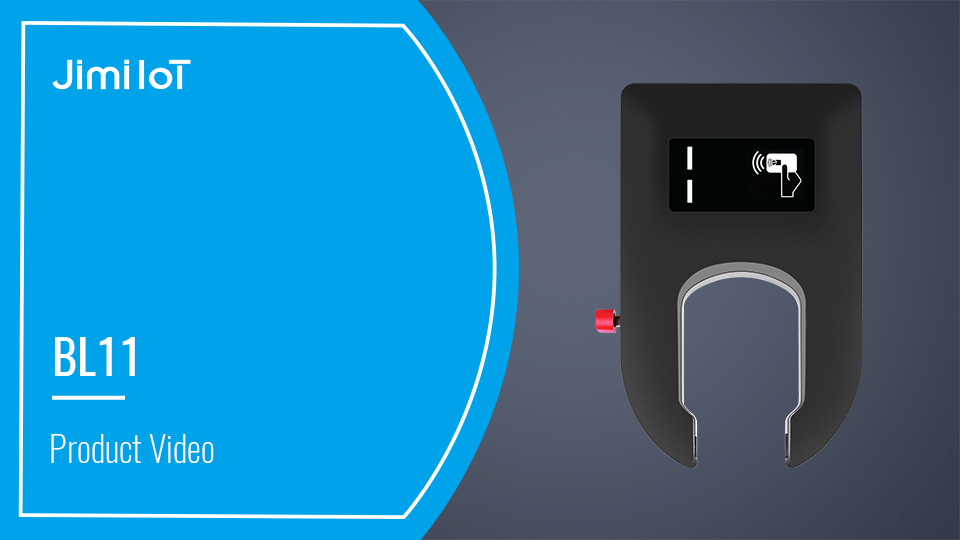

JM-BL11 LTE Cat M1/NB2 GPS Bike Sharing Lock

4g gps bike lock

The JM-BL11 GPS bike sharing lock is an optimized hardware for bike sharing solution powered by Cat M1/NB2 low power consumption technology, reinforced structure, and enhanced data security protection, enabling faster projects implementation and easier bike maintenance, as well as better user experience.
  • upload/image/16164912840.png
  • upload/image/16164912841.png
  • upload/image/16164912842.png
  • upload/image/16164912843.png

GPS/WIFI/LBS/Beacon Positioning

Quick & Simple Unlocking

Solar Powered

Large 10,000mAh Battery

Rugged and Durable Design

IP66 Dust and Water Resistance

Vibration Alert

TLS Data Encryption

GSM Specification
Band JM-BL11E:
LTE Cat-M1/NB: B1/B3/B5/B8/B18/B19/B20/B26
JM-BL11A:
LTE Cat-M1/NB: B1/B2/B3/B4/B5/B12/B13/B28/B66
EGPRS: 850/ 900/1800/1900 MHz
Memory 32+32Mb
GSM sensibility >-102
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error ±0.1ppm
GPS Specification
GPS channel 66
Accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start≤1sec
Avg. cold start≤40sec
Others
Antenna Built-in GSM antenna, GPS ceramic antenna, WIFI antenna, Bluetooth antenna and RFID antenna
Bluetooth Bluetooth 4.0LE
LED Indication 1 x Green LED, 1 x Orange LED
Battery 10,000mAh/3.7V industrial-grade Li-polymer battery
Charging Solar energy (5V/1A)
Operating temperature -20 ~ +60℃
Operating humidity 5%-95%, non-condensing
IP rating IP66
Dimensions 142.5 x 223.7 x 38.0 mm
Weight 816g

Leaflet PDF
User manaul PDF
