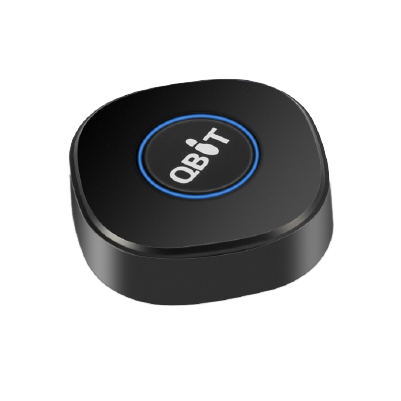

Qbit Mini Personal GPS Tracker

The newly-launched Qbit Personal GPS Tracker will give you a completely new level of awareness and convenience. It stands out by compact, lightweight design for both excellent mobility and reliability. Loaded with GPS, LBS positioning, Qbit enables you to view real-time location from the computer, tablet or smartphone. It is capable of withstanding the extreme environment. Being stylish, tough and accurate, Qbit is an idea for kids, the elder, and people with special needs.

ORDER NOW
Compact size
Easy to carry and able to place it in various locations
GPS+WIFI positioning
Allow the location to be pinpointed in real time or periodically
IPX5 waterproof
Water-resistant case to ensure stable operation in tough environment
Geo-fence alarm
Create geofences in circle or rectangle for key locations
Voice monitoring
It enables you to listen to the surroundings
SOS call
Thumb sized button allowing urgent call during an emergency case
Low battery alarm
A warning will sent by Email or SMS when low battery occurs
Two-way communication
With MIC and speaker, it realizes two-way communication




Hardware Specification
Memory 64 Mb
GSM frequency GSM 800/1900MHz
GPRS Class 12, TCP/IP
Max output GSM 850/1900MHz (33dBm ±3dBm)
GSM 900/1800MHz (30dBm ±3dBm)
Max frequency error ±0.1ppm
Receive sensitivity Class II RBER2%(-102dBm)

GPS Specification
GPS chipset High sensitivity GPS chips
Frequency GPS L1, 1575.42MHz
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity - 165dBm
Acquisition Sensitivity - 148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec

Function & Package
Voice monitor range ≤ 3M
Button 1xSOS
GSM/GPS antenna Built-in quad-band GSM antenna/18.0 x 18.0 x 2.0mm GPS ceramic antenna
Standby time 3-4 days
Working time 3 days (positioning every 10 minutes)
Device weight 33g
Device dimension 45.0 x 45.0x 16.0mm
LED indicator Green/Blue/Green
Operating temperature  -20℃ ~+60 ℃
Standby current ≤5mA
Charger 5VDC/1A
Calling time 2 hours
