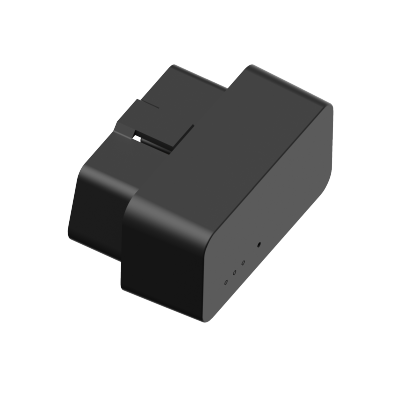

THThe OB22 is an easy-to-install plug & play OBD port vehicle tracker with an excellent location, tracking, reporting, logging, and security capabilities. The compact OB22 utilizes the GSM and GPRS communication networks along with GPS technology, making it an ideal solution for leased vehicles or large fleets.
The OB22 is an easy-to-install plug & play OBD port vehicle tracker with an excellent location, tracking, reporting, logging, and security capabilities. The compact OB22 utilizes the GSM and GPRS communication networks along with GPS technology, making it an ideal solution for leased vehicles or large fleets.
FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & LBS Positioning
Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform.
Compact Size
Ideal for the installation in a small space to maximize unnoticeability.
Effortless Installation
Simply plug this device into OBD II socket, you don't have to turn to professionals.
Unplug Alert
Get notified when the device as been taken out from OBD II port unexpectedly.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Multiple Alerts
Instant alerts for atypical events such as sudden speed change, sharp turn, speeding, etc.
| GNSS | |
| Positioning system | GPS, GLONASS, GALILEO, LBS |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | GSM |
| Frequency | Dual-band 900/1800 & Dual-band 850/1900 MHz |
| Power | |
| Battery | 50mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| Interface | |
| Connector | OBD II port |
| SIM | Nano-SIM |
| Data storage | 32+32Mb |
| Physical specification | |
| Dimensions | 45.0 x 22.5 x 30.0mm |
| Weight | 30g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| Feature | |
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer |
| Ignition detection | External Power Voltage |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Voice-monitor, Vehicle battery detection, Power supply disconnection |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
