JM-LG01

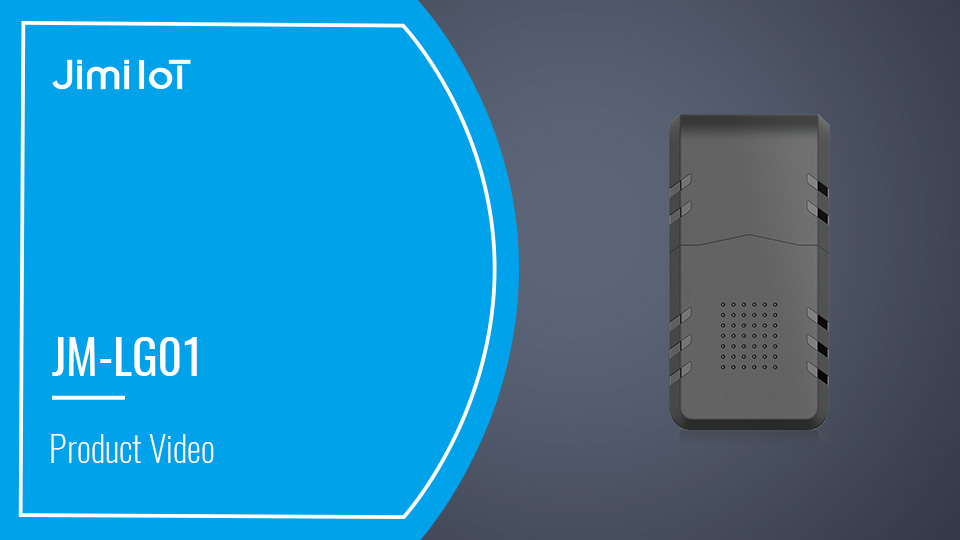

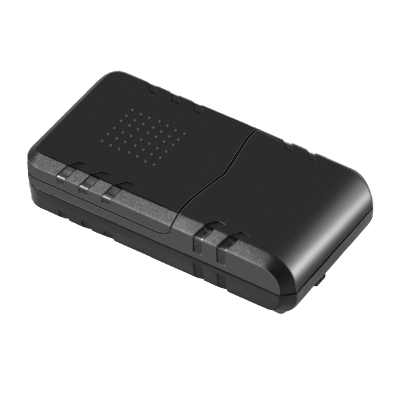

JM-LG01 Asset GPS Tracker

long battery life gps tracker

JM-LG01 is an asset tracking solution that allows you to locate, monitor and optimize your non-powered assets. With a battery life of up to 3 years (WiFi position only), you can stick it on just about anything you want to keep track of.
  • upfilesimg/image/15874495720.jpg
Strong magnet mount
Strong magnet mount Strong magnetic cover allowing for flexible mounting on vehicles or assets
2800mAh disposable battery
2800mAh disposable battery 3 years standby (one positioning data uploaded per day, WiFi position only)
IPX5 water resistance
IPX5 water resistance Water-resistant case to ensure stable operation in tough environment
Tamper alert
Tamper alert Be notified of any removal from original installation
Intelligent power management
Intelligent power management Reduce inefficient power consumption when the device stays idle
GPS & WIFI & LBS positioning
GPS & WIFI & LBS positioning Allow the location to be pinpointed in real time or periodically
Application Areas
GSM Specification
GSM frequency 850/900/1800/1900MHz
GPRS Class 12, TCP/IP
Memory 32 + 32 Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error ±0.1ppm
Receive sensitivity Class II RBER2%(-102dBm)
GPS Specification
Chipset High sensitivity GPS chips
Frequency GPS L1, 1575.42MHz
Channel 66
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec
Others
Antenna Built-in quad band GSM antenna, GPS ceramic antenna
LED indicator Red: working status
Working voltage/current 3VDC/50mA
Battery 2800mAh/3.0V lithium manganese battery
Tracking time 45 hours (GPS is always on)
Standby  3 years ( one positioning data uploaded per day, WiFi position only)
Operating temperature -20℃~+70℃
Water proof grade IPX5
Device weight 72g; 94g (with magnetic cover)
Device dimension 82.0 x 42.0x 20.0mm
