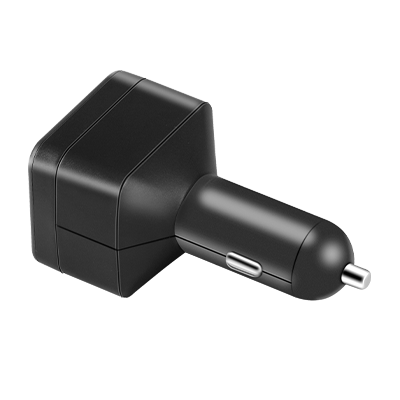

THThe HVT001 is a discreet car GPS tracker cleverly integrated into a cigarette lighter style USB charger. This plug-n-play tracker installs quickly in virtually any vehicle, providing real-time GPS location, audio monitoring of the surrounding environment, and more. This inconspicuous and unobtrusive tracker is ideal for both fleet management and individual applications.
The HVT001 is a discreet car GPS tracker cleverly integrated into a cigarette lighter style USB charger. This plug-n-play tracker installs quickly in virtually any vehicle, providing real-time GPS location, audio monitoring of the surrounding environment, and more. This inconspicuous and unobtrusive tracker is ideal for both fleet management and individual applications.
FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & LBS Positioning
Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform.
Embedded Microphone
An unnoticeable Mic capturing and reporting the sounds surrounding device.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Geo-fence
A virtual area set on platform by yourself, you'll be informed when vehicle crossing its boundary.
Power-off Alert
Get instant alerts when an interruption of power supply is detected.
Dual USB Charging Ports
Two USB charging ports for other electronic devices such as mobile phones.
Over-speed Alert
You'll be notified when vehicle speed is higher than preset value.
| GNSS | |
| Positioning system | GPS, GLONASS, GALILEO |
| Frequency | L1 |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | GSM |
| Frequency | Quad-band 850/900/1800/1900 MHz |
| Power | |
| Battery | 130 mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-24VDC |
| Interface | |
| Connector | Cigarette lighter socket |
| SIM | Nano-SIM |
| USB | 2 x USB type A for charging |
| Data storage | 128Mb |
| Physical specification | |
| Dimensions | 84.0 x 44.0 x 38.0mm |
| Weight | 102.8g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| Feature | |
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer |
| Ignition detection | External power voltage |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, SOS call, Voice-monitor, Vehicle battery detection, Power supply disconnection |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Corporate Cars
Vehicle Rental
Stolen Vehicle Recovery
APPLICATIONS
Corporate Cars
Vehicle Rental
Stolen Vehicle Recovery

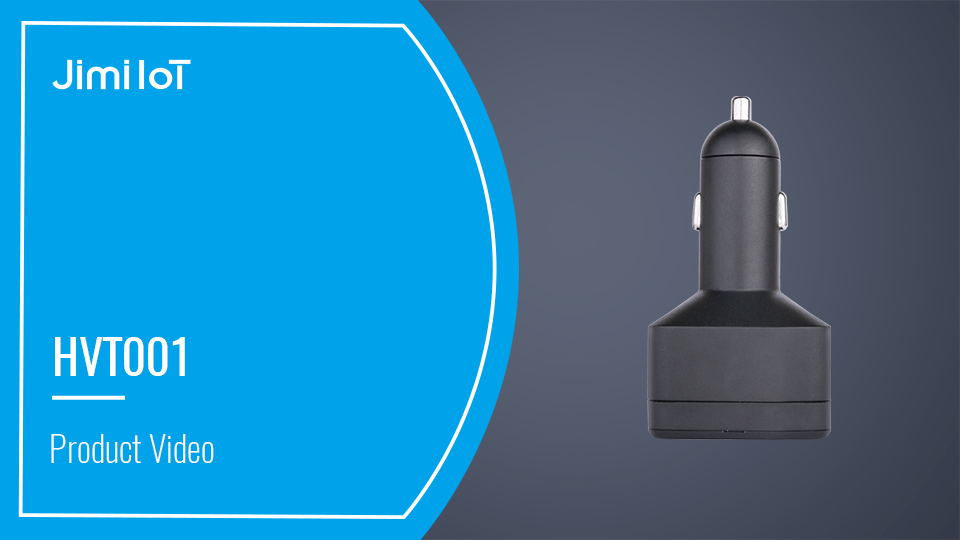

VIDEO
