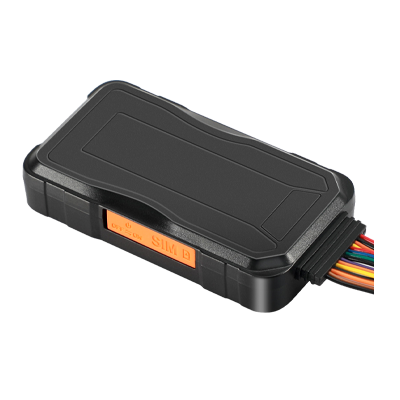

GT06E
GT06E 3G Multifunctional GPS Tracker

3G GPS Tracker

The GT06E GPS tracker is a smart and multi-functional 3G tracker perfect for logistics, heavy equipment tracking, auto finance management, or any other fleet of vehicles. Various alarms and alerts, an SOS button, voice monitoring, and multiple other I/Os for RFID readers, fuel sensors and other peripherals allow you to customize the GT06E to fit your specific fleet needs.

The GT06E updates location data according to set intervals and events. Combined with the tracking platform and app, you can view the real-time vehicle status, locate your car, and replay historical routes. In the event of theft or tow, alerts can be sent to your smartphone directly, providing you with constant security.

Because of its impressive feature set and competitive price, the GT06E has enjoyed global success and popularity since its launch.


  • upfilesimg/image/15874485640.jpg
Panic Button
Panic Button Thumb-sized button allowing urgent call during an emergency case
Remote Cut-off (Fuel/Power)
Remote Cut-off (Fuel/Power) Immobilize a vehicle by cutting off its power source/fuel supply through an installed relay
Panic Button
Panic Button A button close to driver allowing him to ask for immediate help with just a single press
RS232 & TTL Serial Port
RS232 & TTL Serial Port Able to connect with different accessories for feature expansions
External Mic for Audio Monitoring
External Mic for Audio Monitoring Extended microphone cable makes it easier to put microphone inside cab
WCDMA & HSPDA & GSM Network Support
WCDMA & HSPDA & GSM Network Support Quickly get notified when fuel level is harshly changing
Application Areas


GNSS


Positioning system GPS+LBS
Frequency L1
Positioning accuracy <10 meters
Track sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤38sec


Cellular


Communication network WCDMA/GSM
Frequency WCDMA: 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz
Power
Battery 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-33VDC


Interface


LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Standard-SIM
Data storage 32+32Mb
Digital inputs ACC, SOS, input
Digital outputs Relay, output
Physical specification
Dimensions 98.0 x 52.0 x 15.0mm
Weight 80g


Operating environment


Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing


Feature


Voice monitoring range ≤5 meters
Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Voice Monitoring, Vehicle battery detection, Power supply disconnection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision

User manual PDF
Leaflet PDF
(Optional) Analog Capacitive Fuel Sensor Tutorial PDF
(Optional) Buzzer Tutorial PDF
(Optional) RFID Reader Tutorial PDF
(Optional) Temperature Sensor Tutorial PDF
(Optional) Ultrasonic Fuel Sensor Tutorial PDF
