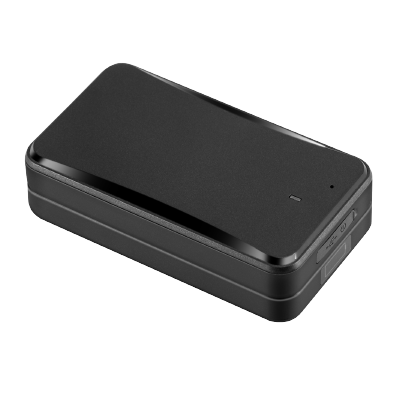

AT6 3G Asset GPS Tracker

AT6 3G GPS Asset Tracker

AT6 is a 3G GPS asset tracker equipped with a high powered lithium-ion battery which can last between 7 weeks and 2 years, depending on the reporting interval. The magnetic, waterproof housing allows the AT6 to be easily and inconspicuously placed inside or underneath a vehicle or other asset. ORDER NOW
2G (GSM) & 3G (WCDMA) network support
3G network for outstanding coverage
Cover dismantlement alert
Alarms triggered if SIM changed or device tuned on/off illegally
Intelligent power management
3G communication module can be disabled for better power saving
Strong magnet mount
Strong magnetic cover allowing for flexible mounting on vehicles or assets
Tamper alert
Be notified of any removal from original installation
High capacity 10,000mAh rechargeable battery
High capacity Li-ion battery ensuring sufficient power supply
IP65 dust and water resistance
Water-resistant case to ensure stable operation in tough environment
External mic for audio monitoring
Listen to the surroundings by sending SMS command
WCDMA/GSM Specification
Communication system WCDMA/GSM
Frequency  GSM: 850/900/1800/1900MHz                                                              WCDMA: 850/900/1900/2100MHz (B1/B2/B5/B8)
GPRS Class 12, TCP/IP
Memory 32 + 32 Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33dBm
GSM1800/GSM1900:30dBm                                                              WCDMA:24dBm
Max frequency error ±0.1ppm
Receive sensitivity GSM<-106dBm, WCDMA<-102dBm
GPS Specification
GPS chip U-blox
Frequency GPS L1, 1575.42MHz
Channel 66
Location accuracy <10 meters
Tracking sensitivity  -162dBm
Acquisition sensitivity  -149dBm
TTFF (open sky) Avg. hot start ≤1sec; Avg. cold start ≤45sec
Others
Switch 1 for power control
Button 1 for power on/off;                                                                                      1 for cover remove alarm;                                                                            1 for tamper/disassemble alarm
GPS antenna GPS ceramic antenna
LED indicator 1 red LED for GSM; 4 blue LEDs for battery
Standby 2 years ( GSM off, one position per day);                                                      50 days (GPRS always connected, GPS sleep);                                            120 hours (GPS always on)
Operating temperature  -20 ~+70
Battery 10000mAh/3.7V lithium polymer battery
Dimension 108.5*61*30mm
Weight 286g
